How To Wire Batteries In Parallel: The Complete Engineering Guide For Safe Power Expansion

Wiring batteries in parallel increases the total current capacity (Amp-hours) of a system while keeping the system voltage identical to that of a single battery. To perform this configuration safely, you must connect the positive terminals together and the negative terminals together using identical cables, then connect the external load diagonally across the bank. Implementing this setup requires precise voltage matching to within 50 millivolts to prevent hazardous balancing currents.

Pre-Wiring Diagnostics and Electrical Safety Checklist

Expanding a DC power system through parallel wiring requires strict adherence to electrochemical and electrical engineering principles. Before handling any live terminals, you must ensure that all components are fully compatible and that you have the proper safety equipment. Mixing battery ages, capacities, or chemistries can lead to thermal runaway, chemical leaks, or catastrophic battery failure.

Required Materials and Technical Benchmarks

• Essential Tools and Gear:


  • Digital multimeter with 0.1mV resolution.
  • Calibrated torque wrench (inch-pounds or Newton-meters).
  • Heavy-duty wire cutters and hydraulic lug crimping tool.
  • Wire brush or terminal cleaning tool.
  • Insulated hand tools (wrenches and screwdrivers).
  • Personal Protective Equipment (PPE): Class 0 rated electrical safety gloves and chemical-resistant safety goggles.
• Mandatory Material Specifications:


  • Pure copper battery interconnect cables (oxygen-free, fine-stranded marine grade, sized to standard AWG specifications based on maximum current draw).
  • Closed-end, tin-plated copper eyelet lugs sized to match the battery terminal studs.
  • Adhesive-lined, dual-wall polyolefin heat shrink tubing (red and black).
  • Dielectric grease or anti-corrosion terminal spray.
• Estimated Budget & Project Duration:


  • Project Cost: $40 to $200 (excluding batteries), depending on the gauge of pure copper cabling and high-grade crimping lugs required.
  • Project Duration: 45 to 90 minutes of focused, distraction-free execution.

Step-by-Step Parallel Battery Bank Configuration

Step 1: Inspect, Match, and Balance Battery Metrics

Do not attempt to connect batteries in parallel without first measuring their individual open-circuit voltages. The absolute fundamental rule of parallel wiring is parameter matching. All batteries in the bank must share the same nominal voltage, chemical makeup (such as Lithium Iron Phosphate, Sealed Lead-Acid, or Absorbent Glass Mat), and amp-hour capacity.

Using your digital multimeter, measure the voltage across the positive and negative terminals of each battery individually. The readings must be within 0.05 volts (50 millivolts) of each other. If there is a larger variance, charge the lower-voltage batteries individually with an appropriate smart charger until they match. Connecting batteries with unequal states of charge causes the higher-voltage battery to discharge rapidly into the lower-voltage battery, resulting in extremely high, unmanaged current flow that can melt terminals or spark fires.

Step 2: Fabricate and Size Equal-Length Interconnect Cables

Unequal cable lengths introduce varying levels of electrical resistance within your battery bank. If one path has higher resistance, the current will flow unequally, overloading one battery while underutilizing another. This leads to premature bank degradation and uneven heating.

Measure the exact distance between the terminal studs of the adjacent batteries. Cut your positive (red) and negative (black) copper cables to identical lengths, down to the millimeter. Use a heavy-duty crimper to secure tin-plated copper lugs to both ends of each cable. Slide adhesive-lined heat shrink tubing over the crimp barrel, applying heat until the glue squeezes out slightly to create an airtight, moisture-proof seal that prevents internal oxidation of the copper strands.

Step 3: Clean and Prepare Terminal Connections

High electrical resistance at the terminal interface is a frequent cause of system failure and localized overheating. Use a terminal cleaning wire brush to scrub the contact surfaces of both the battery studs and the cable lugs until they are bright and free of oxidation, dirt, or shipping grease.

Apply a very thin, uniform layer of dielectric grease or anti-corrosion spray to the cleaned metal surfaces. This step is especially critical in marine, automotive, or off-grid outdoor applications where high humidity and temperature swings accelerate galvanic corrosion.

Step 4: Secure Positive-to-Positive Connections

Always make your positive connections first to reduce the risk of accidental short circuits caused by dropped tools.

Position your batteries side-by-side with the positive (+) terminals aligned on one side and the negative (-) terminals aligned on the opposite side. Place the first red interconnect cable onto the positive terminal of Battery 1, and connect the other end to the positive terminal of Battery 2. Repeat this process for any additional batteries in the chain.

Torque the terminal nuts using a calibrated torque wrench. Do not rely on hand-tightening. Refer to the manufacturer's specifications—typically 70 to 100 inch-pounds for standard marine terminals or threaded inserts.

Warning: Never let your wrench touch a positive terminal and a negative terminal or the metal chassis simultaneously. This will cause an immediate dead short, releasing hundreds of amps of current, vaporizing metal, and causing severe burns or battery explosions.

Step 5: Secure Negative-to-Negative Connections

Once all positive terminals are safely connected and torqued, proceed to the negative (-) terminals.

Attach the black interconnect cable from the negative terminal of Battery 1 to the negative terminal of Battery 2, continuing down the bank for all remaining batteries. Torque every negative terminal connection to the exact same specification used on the positive side. Double-check that all cables are routed neatly without sharp bends, kinks, or stress on the terminal posts.

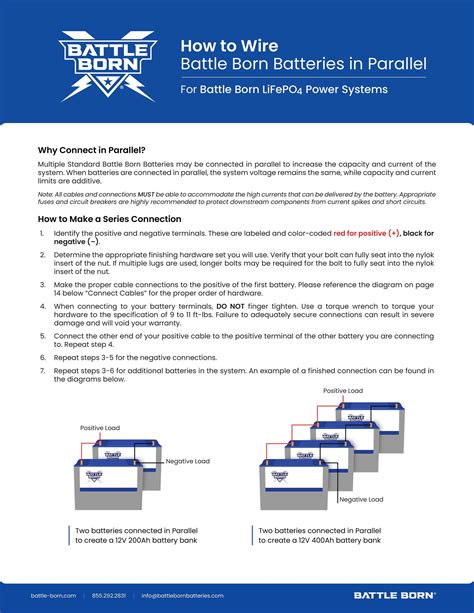

Step 6: Connect the System Load Diagonally

To ensure that current is drawn equally from all batteries in the parallel bank, you must employ a diagonal wiring scheme for your main system loads (such as your inverter, fuse block, or distribution panel).

Connect the main positive DC system cable to the positive (+) terminal of Battery 1 (the first battery in your parallel chain). Then, connect the main negative DC system cable to the negative (-) terminal of the last battery in your chain (for example, Battery 2, 3, or 4).

Pro-Tip: Connecting both the positive and negative main leads to the same single battery forces that specific battery to handle the brunt of the charge and discharge cycles, leading to its rapid failure. Diagonal routing ensures that the current must travel through the entire system of interconnect cables, balancing the electrical resistance and distribution across every unit in the bank.

Step 7: Verify Circuit Continuity and Voltage Output

Before switching on your main breaker or powering up your DC loads, perform a final system test. Set your digital multimeter to DC volts. Place the positive probe on the main positive terminal connection (at Battery 1) and the negative probe on the main negative terminal connection (at the last battery in the bank).

The multimeter should read the nominal voltage of a single battery (for instance, approximately 12.6V to 12.8V for a fully charged lead-acid bank, or 13.2V to 13.6V for a lithium iron phosphate bank). If the voltage matches your expectation, carefully power up your load and monitor the temperature of all terminal connections for the first 10 minutes of operation using an infrared thermometer or by carefully feeling for hot spots with the power off.

Battery Cable Sizing and Torque Specification Reference

Selecting the correct wire gauge (AWG) prevents excessive voltage drop and mitigates the risk of fire from overloaded wires. The table below outlines standard recommendations for continuous current ratings and target torque limits across standard system setups.

Common Parallel Battery Bank Failures and Field Remedies

Scenario 1: Uneven Battery Heating and Accelerated Single-Unit Degradation

• Root Cause: The main system load cables are connected to the positive and negative terminals of the exact same battery, or the interconnect cables are of unequal lengths or gauges. This causes a path-of-least-resistance scenario where one battery performs the majority of the electrical work, heating up and degrading rapidly.
• Actionable Fix: Reconfigure your main system load connections to a diagonal layout. Attach the main positive lead to the first battery in the bank, and attach the main negative lead to the last battery in the bank. Replace any mismatched jumper cables with a brand-new set of identical length, gauge, and brand.

Scenario 2: Heavy Sparking or Arcing Upon Connecting the Final Cable

• Root Cause: A significant voltage differential (greater than 0.1V) existed between the batteries before connection, causing an uncontrolled rush of balancing current, or a load is actively turned on down the line.
• Actionable Fix: Immediately disconnect the sparking cable and check for active loads or short circuits in your system. Use your digital multimeter to measure each battery's voltage individually. If they differ by more than 0.05V, charge or discharge them individually until their voltages match perfectly before attempting reconnection.

Scenario 3: Melted Battery Terminals or Discolored Copper Lugs

• Root Cause: Loose terminal connections or oxidized contact surfaces creating extremely high localized resistance. When high current passes through a high-resistance joint, it generates extreme heat.
• Actionable Fix: Disconnect the system immediately. Cut back any charred or damaged wiring, crimp on fresh copper lugs, and clean all terminal studs thoroughly with a wire brush until bright metal is visible. Reassemble the joints and use a calibrated torque wrench to tighten the nuts to the manufacturer's exact specifications.

Frequently Asked Questions

What happens if you wire batteries with different Amp-hour (Ah) capacities in parallel?

Wiring batteries of different capacities in parallel can cause issues with current distribution. While the batteries will sit at the same voltage, their different internal resistances will cause them to discharge and charge at different rates, often overloading the smaller-capacity battery. Over time, this leads to accelerated capacity loss and premature system failure.

How does parallel wiring affect the overall charge time and charger selection?

Parallel wiring increases the total amp-hour capacity of your bank, which increases your overall charge time if you use the same charger. To maintain optimal charging speeds, you must select a charger with an output current that matches the recommended charge rate of your expanded bank, typically 10% to 20% of the total capacity for lead-acid, or up to 50% for lithium.

Is it necessary to use fuses between parallel battery connections?

Yes, installing fuses on the positive interconnect cables between parallel batteries is a highly recommended safety practice. If an internal short circuit occurs in one of the batteries, the fuses will blow, preventing the remaining batteries in the bank from dumping their entire stored energy into the shorted battery, which could cause a catastrophic fire.

Can you mix lithium-ion and lead-acid batteries in a parallel circuit?

No, you must never mix lithium-ion and lead-acid batteries in parallel under any circumstances. They have completely different nominal voltages, charging profiles, and internal resistance characteristics, which will lead to the lithium battery rapidly discharging into the lead-acid battery, damaging both packs and presenting a severe fire hazard.
