How To Use A Deburring Tool: The Complete Professional Guide

A deburring tool is a specialized manual hand tool designed to remove sharp edges, burrs, and surface imperfections left behind by machining, cutting, or drilling operations. Mastering this tool requires selecting the appropriate blade geometry for your workpiece material, maintaining a consistent 45-degree approach angle, and applying light, controlled pressure to achieve a smooth, uniform chamfer.

Preparing Your Workspace, Tooling, and Safety Gear

Before removing burrs from any workpiece, establish a controlled environment equipped with the correct hardware and personal protective equipment. Metal shards and plastic curls generated during deburring can easily cause skin punctures or eye injuries, making proper preparation non-negotiable for machinists, fabricators, and metalworking hobbyists.

• Essential Gear, Tools, and Materials:

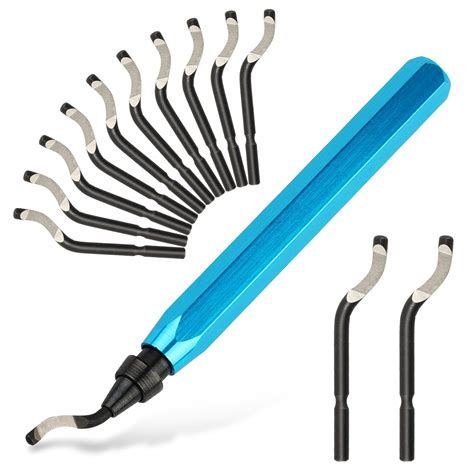

  • Heavy-duty swivel-head deburring handle (aluminum or reinforced composite body)
  • High-Speed Steel (HSS) or cobalt-infused blades (specifically S10, S20, or S30 designations)
  • ANSI Z87.1-certified safety glasses or full-face shield
  • Cut-resistant work gloves (ANSI Cut Level A4 or higher for handling sharp edges)
  • Workpiece clamping device (bench vise, C-clamps, or specialized fixture)
  • Cleaning brush and solvent for removing metal dust and oils

• Mandatory Prerequisite Knowledge and Standards:




  • Familiarity with ISO 13715 technical drawings for edge specifications
  • Understanding of material hardness classifications (HRC and Brinell scales) to prevent blade chipping
  • Recognition of burr formation mechanics (Poisson bulge and exit burrs from drilling)

• Estimated Budget and Duration Benchmarks:




  • Entry-level professional tool kit cost: Twenty to fifty USD
  • Typical setup time: Two to five minutes
  • Average execution time per standard hole or linear edge: Ten to thirty seconds

Step-by-Step Execution Workflow for Precision Deburring

Step 1: Secure and Stabilize the Workpiece

Mount your workpiece securely in a heavy-duty bench vise or clamping fixture to eliminate any chatter, movement, or vibration during the process. Unsecured components will twist or shift under hand pressure, resulting in uneven chamfers, gouged surfaces, and broken blade tips. Ensure the edge or hole requiring deburring is fully exposed and illuminated by task lighting.

Warning: Never hold the workpiece in one hand while operating a deburring tool with the other. If the blade catches a heavy burr or a seam, the tool can instantly slip and severely lacerate your palm or fingers.

Step 2: Select and Install the Correct Blade

Examine your workpiece material and choose the appropriate blade profile from your assortment. For standard carbon steels and aluminum, an S10 blade with a 40-degree cutting angle is optimal. For brass and cast iron, use an S20 blade, while internal keyways and tight slots require specialized scraper blades. Depress the locking collar on the handle, insert the blade tang firmly until it clicks into the retaining mechanism, and verify that the blade rotates smoothly 360 degrees in the socket.

Step 3: Position the Tool and Engage the Edge

Approach the workpiece with the deburring handle held at a comfortable angle, typically aligning the blade shank roughly perpendicular to the edge for linear profiles or at a 45-degree angle for internal hole perimeters. Allow the swivel feature of the tool to orient the cutting edge naturally against the contour of the metal or plastic. The flat face of the blade should rest flush against the mating surface while the cutting edge engages the microscopic intersection where the face meets the cut.

Step 4: Execute the Stroke with Controlled Pressure

Apply minimal axial force—just enough to keep the cutting edge in contact with the material—and pull or push the tool smoothly along the edge in a single, continuous motion. Do not press downward aggressively; letting the sharp HSS edge shear away the material guarantees a clean, chatter-free finish.

Pro-Tip: Let the tool do the work. Excessive downward pressure causes the blade to bite too deeply into the base material, creating unsightly gouges, scalloped edges, and premature blade wear.

Step 5: Clear Debris and Inspect the Finish

Wipe the newly chamfered edge clean using a shop brush or compressed air, removing all fine metallic curls and particulate matter. Run a gloved finger or an inspection pick lightly along the edge to verify that all burrs have been completely severed and that a uniform, clean break-edge has been created. If rough spots or residual burrs remain, adjust your approach angle slightly and execute one final, light pass.

Technical Specifications and Material Selection Matrix

Choosing the correct blade geometry and operational approach depends entirely on the metallurgical properties of your substrate. The following matrix outlines the standardized parameters required for successful deburring across common industrial materials.

Troubleshooting Common Deburring Defects and Field Fixes

Even experienced technicians occasionally encounter cutting issues caused by improper technique, worn tooling, or challenging material behaviors. Review these frequent field failures to diagnose and correct operational problems instantly.

• Root Cause (Blade Chattering and Skipping): Applying excessive downward force or operating the tool at an overly steep angle causes the swivel blade to bounce erratically across the metal surface.




  • Actionable Fix: Lighten your grip, reduce downward pressure by half, and lay the flat of the blade flatter against the workpiece surface to stabilize the cut.

• Root Cause (Scored or Gouged Workpiece Surfaces): The operator is forcing a dull blade or using an incorrect blade profile for soft materials like aluminum, causing the tool to dig directly into the finished part face.




  • Actionable Fix: Replace the worn blade immediately with a fresh HSS insert and maintain a strictly tangential approach vector to keep the cutting edge parallel to the chamfer.

• Root Cause (Stringy Burrs Remaining on Plastics): Flexible thermoplastics like polyethylene or nylon are bending away from the cutting edge instead of being cleanly sheared.




  • Actionable Fix: Switch to a dedicated scraper blade with a more acute cutting angle or gently chill the plastic workpiece with a localized coolant spray prior to deburring.

• Root Cause (Premature Blade Breakage): Twisting the handle sideways while the blade is deeply engaged in a tight internal radius places immense lateral shear stress on the blade tang.




  • Actionable Fix: Ensure the tool handle pivots freely, avoid lateral torque during the stroke, and use dedicated internal scraper tools for restricted-access geometries.

Frequently Asked Questions

Can I sharpen a dull deburring tool blade?

While high-speed steel blades can technically be touched up using a fine diamond hone, it is rarely cost-effective or practical due to the small, curved geometry of the cutting edge. Replacing the inexpensive disposable blade takes seconds and guarantees optimal cutting geometry every time.

How do I deburr the inside of a small drilled hole?

Insert a specialized internal deburring blade into your handle, place the tip directly inside the hole, and rotate the tool handle 360 degrees in a clockwise direction while applying gentle outward radial pressure. The swivel head will naturally track the interior perimeter of the hole to cleanly remove the exit burr.

What is the difference between a countersink bit and a deburring tool?

A countersink bit is a rotary machine tool used in a drill press or mill to create a conical recess for flat-head screws, whereas a deburring tool is a handheld manual implement designed for quick, versatile edge-breaking on holes, tubes, and sheet metal edges without power equipment.

Why does my deburring tool blade keep falling out of the handle?

The retaining mechanism inside the handle is likely jammed with metallic chips, or the spring clip has lost tension. Depress the collar fully, remove the blade, clear out any accumulated debris using a pick or compressed air, and snap a new blade securely into place.

Is it necessary to deburr aluminum parts?

Yes, aluminum forms sharp, fibrous burrs that easily slice skin during handling and can cause assembly interference or fatigue crack initiation in structural components. Deburring ensures safe handling and compliance with basic engineering finishing standards.
