How To Test A Motorcycle Battery: A Comprehensive Diagnostic Guide
Testing a motorcycle battery requires a reliable digital multimeter or a specialized load tester to accurately measure resting voltage and cranking capacity against factory specifications. By checking open-circuit voltage, performing a dynamic load test, and inspecting the physical terminals for sulfation or corrosion, you can accurately diagnose whether your battery needs a standard recharge or a full replacement before leaving you stranded.
Essential Preparation and Diagnostic Equipment
Accurate electrical diagnostics rely on proper preparation and the correct selection of measuring instruments. Before handling any electrical components, you must ensure your workspace is well-ventilated and free of open flames, as lead-acid and AGM batteries vent flammable hydrogen gas during charging and discharging cycles. Always wear safety glasses and chemical-resistant gloves to protect against corrosive sulfuric acid leaks.
To complete this diagnostic workflow effectively, gather the necessary tools and verify the standard benchmarks required for a healthy motorcycle electrical system.
- Essential Gear and Tools: Digital Multimeter (capable of measuring DC volts up to 20V and amperage), carbon pile load tester or hand-held digital battery analyzer, insulated hand tools (10mm wrench or socket for terminal bolts), wire brush or terminal cleaner, and a shop towel.
- Prerequisite Knowledge and Standards: Familiarity with basic multimeter operation, standard 12-volt automotive electrical architecture, and the specific chemistry type of your battery (Conventional Flooded, AGM, or Lithium-Iron Phosphate).
- Time and Cost Benchmarks: Estimated completion time is 15 to 30 minutes. The primary tool cost ranges from 15 to 50 USD for a quality digital multimeter, while professional load testers may cost more.
Step-by-Step Motorcycle Battery Testing Workflow
Step 1: Access the Battery and Perform a Visual Inspection
Locate your motorcycle battery, which is typically found beneath the rider seat, behind side covers, or tucked behind a front fairing depending on your machine's architecture. Remove the necessary body panels or seats using appropriate hand tools to expose the battery casing and terminals. Visually inspect the exterior housing for any signs of physical damage, such as bulges, cracks, terminal corrosion, or white and blue powdery buildup indicative of sulfation.
Warning: If the battery case is visibly cracked, leaking fluid, or severely bloated from overcharging, stop testing immediately, disconnect the system, and replace the unit safely.
Step 2: Measure the Open-Circuit Resting Voltage
Set your digital multimeter to the direct current voltage setting (DCV) with a threshold capable of reading 20 volts. Touch the red positive multimeter probe to the positive battery terminal and the black negative probe to the negative battery terminal. Ensure a solid, clean contact is made to secure an accurate digital readout. Note the displayed voltage on the multimeter screen while the ignition is completely turned off and the motorcycle has been sitting unused for at least two hours.
Pro-Tip: A fully charged, healthy conventional or AGM motorcycle battery should display an open-circuit resting voltage between 12.6 and 12.8 volts. Anything dropping below 12.4 volts indicates a partial discharge that requires bench charging.
Step 3: Conduct a Dynamic Starter Load Test
Leave the digital multimeter connected across the battery terminals while attempting to start the motorcycle engine. Observe the voltage drop on the multimeter screen as the starter motor engages and draws heavy amperage from the battery. A healthy battery will maintain a sustained voltage above 9.5 to 10.0 volts during the cranking cycle. If the voltage plunges below 9.0 volts while cranking, the battery cells are failing to hold a charge under stress and lack the capacity to turn the starter motor reliably.
Step 4: Perform the Alternator Charging System Verification
Once the motorcycle engine starts and idles successfully, keep the multimeter connected to the battery terminals to check the charging output from the alternator and regulator-rectifier. Read the voltage at idle, and then gently blip the throttle to bring the engine speed up to approximately 3,000 RPM. The charging voltage should rise steadily and stabilize within the healthy operating window of 13.5 to 14.5 volts.
Warning: If the voltage exceeds 15.0 volts at higher RPMs, your voltage regulator is failing and will overcharge, cook, and permanently destroy the battery plates.

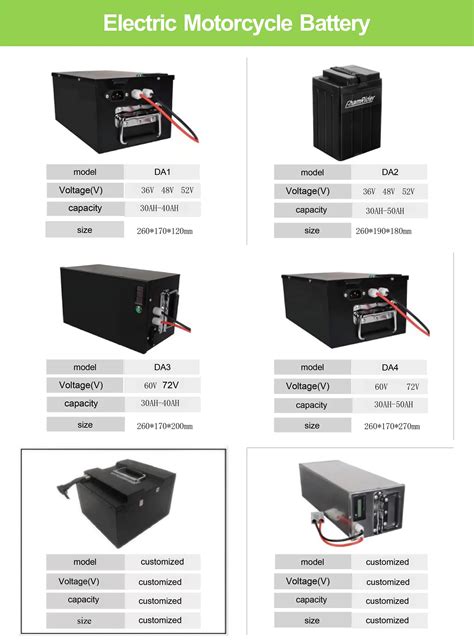

Electric Motorcycle Lithium Ion Battery Pack 48v 52v 60v 72v 50ah 60 Ah ...
Battery Chemistry and Diagnostic Parameters
| Battery Chemistry Type | Fully Charged Resting Voltage | Minimum Load Test Threshold | Standard Maintenance Requirement |
|---|---|---|---|
| Conventional Flooded | 12.6V - 12.8V | > 9.5V during crank | Check electrolyte fluid levels periodically; top off with distilled water only. |
| Absorbed Glass Mat (AGM) | 12.8V - 13.0V | > 9.6V during crank | Sealed construction; maintain with a smart, low-amperage AGM-specific charger. |
| Lithium-Iron Phosphate (LiFePO4) | 13.3V - 13.6V | > 10.0V during crank | Requires a dedicated lithium charger; never use standard desulfating lead-acid modes. |
Common Battery Failures and Field Fixes
- Root Cause: Surface charge skewing initial multimeter readings after a recent ride or quick charge.
- Actionable Fix: Turn on the motorcycle headlight for 30 seconds with the engine off to bleed off surface charge, turn it back off, wait two minutes, and then re-test the resting voltage.
- Root Cause: Heavy oxidation and terminal corrosion preventing proper electrical contact between the battery posts and cable ends.
- Actionable Fix: Disconnect the negative cable first, then the positive cable. Scrub the terminals and cable lugs thoroughly with a wire brush and a baking soda-water solution, rinse, dry, and apply a thin layer of dielectric grease before reconnecting.
- Root Cause: Deep internal sulfation resulting from prolonged storage in a discharged state.
- Actionable Fix: Connect the battery to an intelligent smart charger equipped with a dedicated repair or desulfation mode. If the battery refuses to hold a stable resting voltage above 12.4 volts after a full cycle, replace the unit.
Frequently Asked Questions
How long does a typical motorcycle battery last?
Most well-maintained motorcycle batteries last between three and five years. Factors such as climate extremes, seasonal storage habits, and the use of a smart trickle charger during the off-season significantly influence overall longevity.
Can I test a motorcycle battery with a car battery charger?
Never use a standard automotive battery charger on a motorcycle battery unless it explicitly features a low-amperage setting (1 to 2 amps). High-amperage automotive chargers will quickly overheat motorcycle batteries, warp the internal plates, and cause catastrophic failure or explosion.
What should I do if my battery passes the voltage test but the bike won't start?
If your multimeter shows a healthy resting voltage above 12.6 volts but the starter clicks or fails to engage, the issue likely lies elsewhere in the starting circuit. Inspect the starter relay, check the main system fuse, ensure the kill switch is open, and test the side-stand safety switch.
Is it safe to jump-start a motorcycle with a running car?
You can safely jump-start a motorcycle using a car battery, but you must ensure the automobile engine is turned OFF. A running car alternator outputs a higher charging amperage and voltage fluctuation that can easily fry sensitive motorcycle electronics and instrument clusters.
