Standardizing Drain Flow: How To Shorten A Dishwasher Drain Hose Correctly

Trimming an oversized dishwasher drain hose eliminates low-hanging sags, prevents wastewater backflow, and optimizes pump discharge velocity. To shorten the line safely, cut the hose only at designated smooth rubber connection points or install an approved rubber adapter kit using stainless steel worm-gear clamps. Maintaining an elevated high loop at least 20 inches above the finished cabinet floor is mandatory to satisfy International Plumbing Code (IPC) standards and ensure operational efficiency.

Pre-Operation Planning & Plumbing Assessment Checklist

Modifying a dishwasher drain line requires balancing hydraulic pressure dynamics with municipal plumbing compliance. Excess hose length under a kitchen sink creates low points (belly sags) where debris, grease, and stagnant water accumulate. This extra volume forces the drain pump to work harder, leading to early component failure and foul odors. Before cutting into factory drain lines, verify your specific hose composition—whether it uses a multi-stepped EPDM rubber boot or a continuous corrugated polypropylene line—to select the correct adapter fittings.

Required Materials and Tools

• Cutting Apparatus: Razor-sharp utility knife, heavy-duty pipe cutter, or multi-purpose shears for burr-free perpendicular cuts.
• Fittings & Couplers: 5/8-inch to 7/8-inch ID EPDM rubber hose adapter kit (if cutting through corrugated plastic body sections).
• Fasteners: Marine-grade 304 stainless steel worm-gear hose clamps (sizing: 1/2-inch to 1-1/4-inch range).
• Mounting Hardware: Heavy-duty plastic pipe strap, zip ties, and 3/4-inch stainless steel wood screws for high-loop fixation.
• Safety & Catch Gear: Low-profile catch bucket, microfiber shop towels, nitrile gloves, and safety glasses.

Prerequisite Knowledge & Plumbing Standards

• Code Compliance: Uniform Plumbing Code (UPC 802.1.6) and International Plumbing Code (IPC 802.1.6) dictate that dishwasher discharge lines must terminate with an approved air gap fitting or be elevated to the highest achievable point beneath the countertop (a minimum of 20 inches above the cabinet floor).
• Dimensional Specs: Standard dishwasher drain hoses utilize a nominal 5/8-inch (16mm) or 7/8-inch (22mm) inner diameter (ID).
• Budget & Duration: Expect a material cost of $10 to $25 and an execution timeline of 20 to 40 minutes for standard under-sink installations.

Step-by-Step Execution for Shortening a Dishwasher Drain Hose

Step 1: Isolate System Power and Water Utilities

Disconnect the electrical supply to the dishwasher at the main circuit breaker panel or un-plug the unit from its dedicated under-sink electrical receptacle. Shut off the hot water supply valve supplying the appliance by rotating the knob clockwise until fully seated. Open the under-sink cabinet area and clear away stored items to create an unobstructed workspace around the sink tailpiece, garbage disposal connection, and cabinet side wall penetration. Place a shallow catch basin and absorbent towels beneath the existing drain line connection points to catch residual water trapped within the line.

Warning: Never attempt to cut or disconnect a drain line while the dishwasher is energized. Accidental pump activation during maintenance will discharge hot, gray water into the cabinet cavity, presenting severe electrical shock and water damage risks.

Step 2: Disconnect and Map the Optimal Hose Route

Loosen the existing worm-gear or spring clamp holding the drain hose to the garbage disposal inlet or sink drain tailpiece branch using a flathead screwdriver or 1/4-inch nut driver. Carefully twist and pull the rubber boot off the nipple. Direct the open end of the hose into your catch bucket to drain all residual standing water. Pull the excess hose forward into the cabinet area to measure its full extended length. Route the hose along its intended path—from the appliance cabinet pass-through hole, up to the highest possible point under the countertop rim, and down to the disposal or tailpiece connection—to establish the absolute minimum length required without creating tension on the line.

Step 3: Measure, Mark, and Cut the Drain Hose

Measure the exact excess length of hose while holding the line in its operational position. Inspect the end of your drain line. If the line features a multi-stepped rubber connector boot with pre-molded sizing rings (typically 5/8-inch, 3/4-inch, and 7/8-inch step-downs), locate the specific shoulder diameter that matches your target drain connection port.

If cutting a stepped rubber boot, use a sharp utility knife to make a single, straight, perpendicular cut through the solid rubber channel just behind the unneeded larger segment.

If cutting directly through a hard, corrugated polypropylene body, measure carefully and cut cleanly through the center of a solid flat valley between corrugation ribs. Avoid angled cuts, jagged edges, or tearing the plastic, as uneven edges create path friction and fail to form an airtight seal when coupled.

Pro-Tip: When trimming corrugated plastic, cut leaving 2 to 3 extra inches of slack. A drain hose that is too tight can vibrate against cabinet walls during high-RPM pump discharge cycles, producing severe operational noise and risking long-term abrasion wear.

Step 4: Install the Adapter Boot and Secure Clamps

If you cut through the corrugated plastic section of the hose rather than a factory-molded rubber boot, you must install an EPDM rubber repair coupler to create a watertight seal. Apply a small amount of isopropyl alcohol to the interior of the rubber coupler to act as a temporary lubricant. Push the coupler onto the freshly cut corrugated hose end until it seats firmly over at least three complete corrugation ridges (minimum 1.5 inches of insertion depth). Position a 304 stainless steel worm-gear clamp over the smooth rubber boot directly above the inserted corrugated hose segment. Tighten the clamp using a socket driver until snug, taking care not to crush or deform the interior plastic channel.

If your line retained a shortened factory rubber boot, slide a stainless steel hose clamp onto the modified rubber adapter end. Push the rubber boot firmly over the garbage disposal or sink tailpiece inlet nipple until fully seated against the stop shoulder. Move the hose clamp directly over the middle of the fitting barb and tighten securely.

Step 5: Secure the High Loop and Conduct Leak Checks

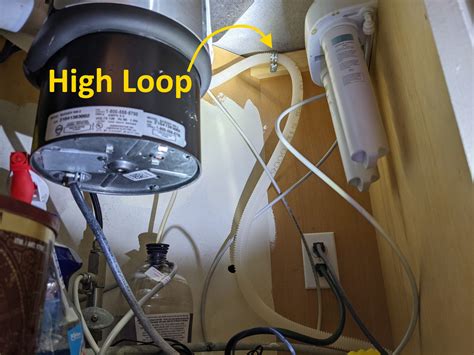

Fix the modified drain hose to the upper cabinet wall using a high-loop clamp or durable pipe strap. Ensure the apex of the loop is positioned at least 20 inches above the cabinet floor surface—ideally mounted directly underneath the countertop edge. This elevated arch prevents dirty sink water from siphoning backward into the clean dishwasher cavity.

Re-establish electrical power and turn on the water supply valve. Execute a short test cycle (such as a Rinse and Hold setting) on the dishwasher. Observe the discharge phase continuously with a flash lamp. Inspect the cut joint, adapter connection, and high-loop anchors for micro-leaks, hose flexing, or pressure drops.

Drain Line Material & Sizing Specifications

Drain Line Diagnostics & Field Troubleshooting

Scenario 1: Siphoning and Water Retention in the Dishwasher Tub

• Root Cause: The drain hose was shortened without maintaining a high loop elevated at least 20 inches above the floor. Without this high arch, gravity causes dirty sink water to flow down into the dishwasher base.
• Actionable Fix: Unfasten the mounting strap on the cabinet side wall. Adjust the line upward until the top curve of the hose touches the lower edge of the countertop. Re-anchor the line securely using a rubber-lined pipe strap to maintain the high loop profile permanently.

Scenario 2: Water Leaking at the Modified Rubber Joint

• Root Cause: The hose clamp was unevenly seated, over-tightened (cutting the rubber), or installed over an uneven, angled cut across the corrugated section of the hose.
• Actionable Fix: Turn off the appliance power and drain the line into a bucket. Remove the hose clamp and inspect the rubber adapter for split tears. Recut the corrugated end perpendicular to the long axis, re-seat the rubber adapter past three corrugation ridges, and tighten the worm-gear clamp using a hand driver to avoid over-torquing.

Scenario 3: High-Pitched Pump Whine and Error Codes (e.g., OE, E24, i20)

• Root Cause: The trimmed hose was reinstalled with a tight radius bend, resulting in a kink that restricts water flow. This restriction increases dynamic backpressure, causing pump cavitation and trigger codes.
• Actionable Fix: Pull the dishwasher forward out of its cabinet cavity slightly to inspect the full hose length. Smooth out localized kinks by rotating the hose boot on its connection port. Ensure the hose transitions smoothly through the cabinet side wall without sharp, 90-degree bends.

Scenario 4: Sewer Gas Odor Under the Sink Cabinet

• Root Cause: The knockout plug inside the garbage disposal inlet port was only partially knocked out when shortening the line, or solid food particles are trapped inside a sagging cut fitting.
• Actionable Fix: Disconnect the hose from the disposal nipple. Insert a screwdriver into the disposal inlet port to ensure the plastic knockout disk is fully removed and no rough flashings remain. Flush the drain line manually with hot water and baking soda solution to clear accumulated organic debris.

Frequently Asked Questions

Can you cut a corrugated dishwasher drain hose anywhere along its length?

No, you should not cut standard thin-walled corrugated plastic hose randomly. Doing so disrupts the structural ribs needed to form an airtight seal with standard hose clamps. Always cut through designated smooth factory rubber ends, or cut squarely through a corrugated valley and use an EPDM adapter sleeve secured with worm-gear clamps.

What happens if a dishwasher drain hose is left too long?

An excessively long drain hose sags under the weight of water, creating low points where dirty waste collects. This obligates the dishwasher pump to push water through unnecessary structural friction, leading to premature pump motor failure, standing water in the tub, and foul odor development.

Is an air gap mandatory after shortening a dishwasher drain hose?

Air gap requirements depend on local plumbing codes. While many jurisdictions permit a high loop mounted at least 20 inches above the cabinet floor as an alternative, certain regions strictly require a physical, countertop-mounted air gap unit to prevent backflow contamination.

How do I join a cut corrugated hose to a garbage disposal?

To attach a trimmed corrugated plastic line to a garbage disposal, install a rubber boot coupler onto the end of the trimmed hose. Fasten the boot to the hose using a stainless steel clamp, then push the open 7/8-inch end of the rubber boot over the disposal’s entry nipple and clamp it firmly.

Can over-tightening a hose clamp damage a shortened drain line?

Yes, over-tightening a worm-gear clamp can strip the plastic corrugation ribs beneath the adapter or cut through soft rubber boots. Tighten the clamp firm hand-tight with a nut driver until the rubber visibly grips the fitting, but avoid using high-torque power drivers.

Technical Support & Service Assistance

If your dishwasher drain modifications require specialized adapters or custom installation kits, consult with qualified plumbing professionals to ensure system integrity. Proper drain installation protects your cabinetry from catastrophic moisture damage and preserves your appliance's factory warranty.
