How To Read Fetal Heart Tracing: A Clinical Guide To Interpretation And NICHD Standards

Fetal heart rate monitoring requires systematic evaluation of the baseline, variability, accelerations, and decelerations to determine fetal oxygenation status. Clinicians utilize the three-tier system defined by the National Institute of Child Health and Human Development (NICHD) to categorize tracings as Category I (normal), Category II (indeterminate), or Category III (abnormal) to guide clinical management.

Clinical Foundations and Monitoring Infrastructure

Before interpreting a fetal heart rate (FHR) strip, you must ensure the monitoring equipment is calibrated and functioning within standard parameters. Modern electronic fetal monitoring (EFM) provides a continuous, real-time visual representation of uterine activity and fetal cardiac responses.

• Essential Equipment:


  • External fetal monitor (ultrasound transducer for FHR, tocodynamometer for uterine contractions).
  • Internal fetal monitoring (fetal scalp electrode for direct ECG, intrauterine pressure catheter for precise contraction intensity).
  • Standardized 3cm/minute paper speed graph paper.
• Mandatory Prerequisite Knowledge:


  • Understanding the physiological basis of FHR regulation via the autonomic nervous system.
  • Proficiency in identifying contraction frequency, duration, and resting tone.
  • Familiarity with NICHD nomenclature to ensure standardized communication between nursing and obstetric staff.
• Benchmarks:


  • Successful monitoring requires at least 20 minutes of observation for a comprehensive assessment.
  • Interpretation should occur in 10-minute segments, though the overall tracing should be viewed as a dynamic evolution.

Systematic Interpretation Workflow

Step 1: Determine the Baseline Fetal Heart Rate

The baseline is the approximate mean FHR rounded to increments of 5 beats per minute (bpm) during a 10-minute window, excluding periodic changes or marked variability.

1. Identify a 10-minute segment of the tracing.
2. Exclude periods of periodic or episodic changes (decelerations or accelerations).
3. Determine the rate. Normal baseline is defined as 110–160 bpm.
4. If the rate is above 160 bpm for more than 10 minutes, document as tachycardia; below 110 bpm is documented as bradycardia.

Pro-Tip: If the baseline is indeterminate due to variability, look for the most representative segment of at least 2 minutes within the 10-minute window.

Step 2: Assess Fetal Heart Rate Variability

Variability is defined as fluctuations in the FHR baseline that are irregular in amplitude and frequency. It is the most critical indicator of fetal oxygen reserve and autonomic nervous system integrity.

1. Absent: Amplitude range of 0 bpm (undetectable).
2. Minimal: Amplitude range greater than undetectable but less than or equal to 5 bpm.
3. Moderate: Amplitude range 6 to 25 bpm (considered the gold standard for fetal well-being).
4. Marked: Amplitude range greater than 25 bpm.

Step 3: Identify Accelerations

Accelerations are visually apparent, abrupt increases in the FHR baseline.

1. At 32 weeks of gestation or beyond, an acceleration must peak at 15 bpm or more above the baseline and last 15 seconds or more, but less than 2 minutes.
2. Before 32 weeks, criteria are 10 bpm or more above baseline for 10 seconds or more.
3. Accelerations are strongly predictive of the absence of fetal metabolic acidemia.

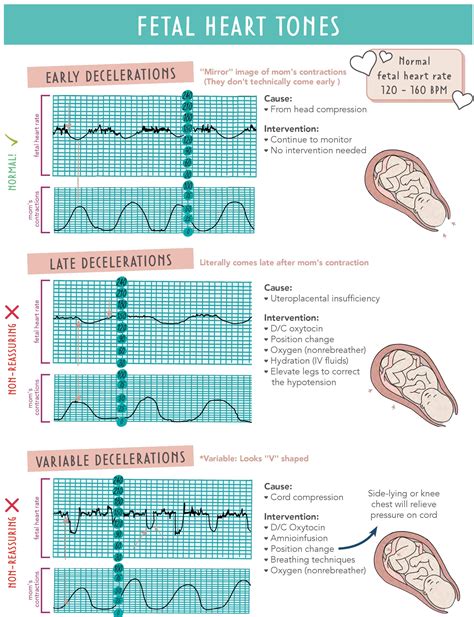

Step 4: Categorize Decelerations

Decelerations are categorized based on their visual appearance, onset relative to uterine contractions, and duration.

1. Early Decelerations: A symmetrical, gradual decrease and return of FHR associated with a contraction, usually caused by head compression.
2. Late Decelerations: A gradual decrease in FHR that begins after the contraction starts, with the nadir occurring after the peak of the contraction. This indicates uteroplacental insufficiency.
3. Variable Decelerations: An abrupt decrease in FHR of 15 bpm or more, lasting 15 seconds to 2 minutes. These are often related to umbilical cord compression.
4. Prolonged Decelerations: A decrease in FHR of at least 15 bpm below baseline lasting 2 minutes or more but less than 10 minutes.

Step 5: Assign NICHD Category

Based on the data collected in steps 1–4, assign the tracing to one of the three established tiers.

• Category I: Normal. Tracings must have a baseline of 110–160 bpm, moderate variability, and no late or variable decelerations.
• Category II: Indeterminate. Includes all tracings not classified as Category I or III, requiring continued monitoring and potential intervention.
• Category III: Abnormal. Includes absent variability with recurrent late or variable decelerations, or a sinusoidal pattern. Requires immediate clinical action.

Technical Parameters and Classification Metrics

Troubleshooting Common Interpretation Errors

• Error: Confusing Maternal Heart Rate with Fetal Heart Rate




  • Root Cause: The transducer is picking up the maternal pulse, often during tachycardia or if the fetus is deceased.
  • Actionable Fix: Palpate the maternal radial pulse while observing the monitor. If the rates are synchronous, the monitor is picking up the mother.

• Error: Misclassifying Variable Decelerations as Late Decelerations




  • Root Cause: Failure to assess the "abruptness" of the onset. Variables have an onset to nadir of less than 30 seconds.
  • Actionable Fix: Use the grid on the EFM paper; measure the time from the start of the decline to the nadir.

• Error: Over-interpreting Minimal Variability




  • Root Cause: Misinterpreting a fetal sleep cycle as pathological hypoxia.
  • Actionable Fix: Provide fetal scalp stimulation or wait for the cycle to conclude (usually within 40 minutes). If no return to moderate variability, initiate further investigation.

Frequently Asked Questions

What is the most important indicator of fetal well-being in EFM?

Moderate variability is the single most reliable sign of fetal well-being, as it indicates a properly functioning autonomic nervous system and adequate oxygenation of the fetal brainstem.

Does a Category II tracing always require a C-section?

No. Category II is indeterminate, meaning the tracing does not meet criteria for either normal or abnormal. Management is dictated by the clinical context, such as gestational age, maternal health, and progression of labor.

What is the significance of a sinusoidal pattern?

A sinusoidal pattern is characterized by a smooth, undulating baseline with a frequency of 3–5 cycles per minute. It is a Category III finding associated with severe fetal anemia, fetal-maternal hemorrhage, or severe hypoxia, requiring immediate intervention.

How does fetal sleep affect the tracing?

Fetal sleep cycles can cause a decrease in baseline variability and an absence of accelerations. These periods are typically transient and rarely exceed 40 minutes in a healthy, non-acidotic fetus.

Elevate Your Clinical Proficiency

Mastering the nuances of fetal heart rate monitoring ensures the highest standards of safety for both mother and child during the intrapartum period. Consult your institution's specific clinical guidelines and continue your education through formal fetal monitoring certification programs to maintain rigorous standards of care.
