How To Manage AVD At Scale: The Enterprise Architecture Blueprint

Managing Azure Virtual Desktop at scale requires moving beyond manual administrative tasks and embracing automation-first paradigms using Azure Resource Manager templates, Intune policy synchronization, and FSLogix profile container optimization. By enforcing granular role-based access control, automated image pipelines with Azure DevOps, and proactive log analytics monitoring, organizations can seamlessly support tens of thousands of remote users while maintaining strict latency thresholds under one hundred fifty milliseconds.

Architectural Prerequisites for Enterprise Virtualization Deployment

Before deploying a massive virtual desktop infrastructure, administrators must establish a robust foundational framework that accounts for network throughput, identity management bottlenecks, and storage input/output operations per second. Scaling failure almost invariably stems from neglecting baseline capacity planning and failing to isolate control plane traffic from user data streams.

• Essential infrastructure tools and services: Azure Image Builder, FSLogix Profile Containers, Azure Monitor with Log Analytics workspaces, Azure Files or Azure NetApp Files for user profiles, and Microsoft Entra ID Connect for hybrid identity synchronization.
• Mandatory prerequisite standards: ExpressRoute or high-bandwidth Site-to-Site VPN with predictable latency, domain controller sizing scaled for rapid logon storms, and strict adherence to the Microsoft Cloud Adoption Framework for Azure.
• Estimated budget and deployment duration: Enterprise scale-out phases typically require a dedicated implementation team working over a twelve to sixteen-week period, with ongoing operational costs heavily weighted toward compute reserved instances and high-performance network storage.

Step-by-Step Enterprise AVD Management Workflow

Step 1: Establish Automated Gold Image Pipelines

Manual image creation introduces configuration drift and security vulnerabilities across large host pools. Modern scale demands an automated build pipeline that integrates Azure Image Builder with HashiCorp Packer or Azure DevOps to produce standardized virtual hard disks on a predictable schedule.

1. Create a version-controlled repository for all customization scripts, application installation binaries, and group policy objects intended for the master image.
2. Configure an Azure Image Builder template that pulls the latest secure Windows 11 Enterprise multi-session image from the Azure Marketplace, applies your automated script sequence, and bakes in the latest FSLogix agent.
3. Validate the resulting managed image by deploying a test session host in a staging host pool, running synthetic load tests, and verifying application compatibility before promotion to production.
4. Publish the verified image to a shared compute gallery, enabling geo-replication across multiple Azure regions for high availability and disaster recovery readiness.

Pro-Tip: Implement a canary host pool configuration to test newly published master images against a small subset of non-critical users before rolling the update out to the entire organization.

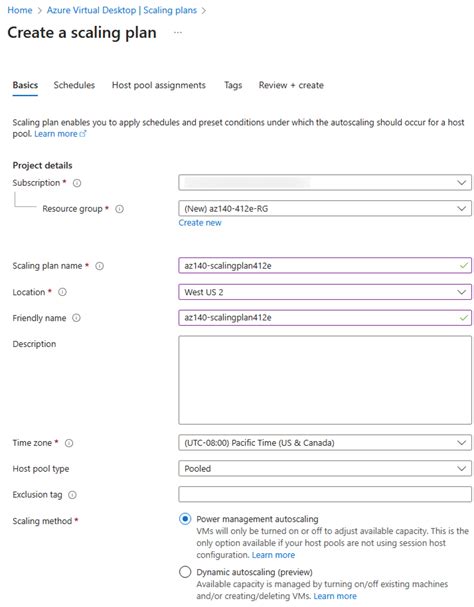

Step 2: Configure Dynamic Host Pool Auto-Scaling

Managing session host capacity manually leads to exorbitant compute costs during off-peak hours and severe user performance degradation during morning logon storms. Utilizing Azure Automation state configuration alongside built-in scaling plans ensures optimal resource utilization.

1. Navigate to the Azure Virtual Desktop management blade and select your target host pool to configure scaling plans.
2. Define distinct schedule profiles for peak hours, off-peak hours, ramp-up periods, and ramp-down periods based on your organization's global time zones and working habits.
3. Set the load balancing algorithm to breadth-first during ramp-up and peak times to distribute user sessions evenly across available compute, switching to depth-first during ramp-down to consolidate sessions and deallocate idle virtual machines.
4. Configure session limits and active grace periods to prevent abrupt forced logouts while ensuring underlying virtual machines shut down cleanly to cease compute billing.

Warning: Ensure that drain mode is explicitly enabled on session hosts designated for maintenance or decommissioning to prevent the placement of new user sessions on dying nodes.

Step 3: Implement Centralized User Profile Management with FSLogix

User profile corruption and slow logon times are primary drivers of IT helpdesk tickets in virtualized environments. FSLogix Profile Containers redirect user profiles to a remote network location, creating a seamless experience indistinguishable from a local machine.

1. Download and deploy the latest FSLogix agent across your master image to ensure profile redirection hooks are loaded during the operating system boot sequence.
2. Provision high-performance storage shares using Azure Files with Azure Active Directory Domain Services authentication or Azure NetApp Files to house the container VHDX files.
3. Configure Group Policy Objects or Intune settings to enable FSLogix Profile Containers, redirecting standard profile folders, Outlook OST files, and OneDrive cache data into the mounted container.
4. Enable cloud cache functionality if users frequently switch between different Azure regions or data centers, providing resilient failover capabilities across redundant storage accounts.

Step 4: Enforce Endpoint Security and Policy Governance

At scale, individual configuration of remote endpoints is impossible, requiring unified endpoint management tools to enforce compliance, control peripheral redirection, and secure data movement.

1. Enroll all physical and virtual endpoints into Microsoft Intune to maintain continuous visibility over device compliance states.
2. Deploy security baselines tailored for multi-session operating systems, disabling unnecessary background services, Cortana integrations, and resource-heavy visual effects.
3. Configure Remote Desktop Protocol properties via host pool custom RDP settings to restrict local drive redirection, clipboard access, and printer mapping based on user risk levels.
4. Integrate Microsoft Defender for Endpoint across all session hosts to monitor behavioral anomalies, process injection attempts, and unauthorized lateral movement in real time.

Enterprise AVD Storage and Compute Parameter Comparison

Common Scale Failures and Field Fixes

• Boot Storm Timeouts and Domain Join Failures




  • Root Cause: Simultaneous power-on requests from hundreds of session hosts overwhelm the Active Directory domain controllers, causing domain join timeouts during automated scale-out operations.
  • Actionable Fix: Implement distributed domain controllers across multiple availability zones, increase the automatic retry interval within the ARM deployment template, and use staging increments for large host pool expansions.

• FSLogix Profile Lockups and Corruption




  • Root Cause: Abrupt session termination or network blips leave dangling VHDX file locks on the remote storage share, preventing subsequent user logons.
  • Actionable Fix: Enable the FSLogix Profile Disk Compaction feature, configure automatic session logoff policies for idle states, and deploy the FSLogix profile health monitoring tool to automatically clear stale locks.

• Network Latency and Poor Multimedia Redirection




  • Root Cause: Inefficient routing of RemoteFX or WebRTC media traffic, causing high CPU consumption on session hosts during video conferencing or multimedia playback.
  • Actionable Fix: Enable UDP transport for RDP shortpath, configure Quality of Service policies on corporate firewalls to prioritize audio and video streams, and ensure WebRTC redirection is active for collaboration tools like Microsoft Teams.

Frequently Asked Questions

How many session hosts should be assigned to a single host pool?

While technical limits allow thousands of hosts per pool, enterprise best practices recommend capping individual host pools at approximately one hundred to two hundred virtual machines to simplify management, isolate blast radiuses during patching, and ensure rapid ARM template deployment times.

What is the best way to handle application updates across thousands of VMs?

Instead of installing applications directly onto running session hosts, leverage MSIX app attach to deliver applications dynamically from a centralized share. This decouples application lifecycle management from the underlying gold image, allowing instant updates without rebuilding entire virtual hard disks.

How can administrators reduce compute costs during non-business hours?

Deploy native Azure Virtual Desktop scaling plans or third-party orchestration tools to automatically power down session hosts when user demand drops below specified thresholds. Combined with Azure Reserved Instances for baseline capacity, this approach can reduce overall compute spend by up to forty percent.

Why are users experiencing slow logon times despite adequate storage IOPS?

Logon delays are frequently caused by excessive Group Policy Object processing or bloated user profile containers containing cached telemetry and temporary application data. Implementing loopback processing for GPOs, enabling folder redirection exclusions, and setting up automatic FSLogix profile cleanup scripts will drastically improve logon speeds.
