How To Install Bifold Doors Without A Bottom Track: Step-by-Step Guide

Installing top-hung bifold doors without a bottom floor track creates a seamless transition across rooms while eliminating trip hazards and debris accumulation in floor channels. This configuration relies entirely on an overhead structural track and a jamb-mounted bottom pivot bracket to anchor the stationary door panel. Executing a successful installation requires a rigid header capable of supporting the full panel weight, alongside precise plumb alignment between the top pivot receiver and the lower jamb bracket.

Structural Assessment & Pre-Installation Hardware Planning

Top-hung bifold systems transfer the entirety of the door assembly's dead load directly into the head jamb. Unlike traditional systems that distribute weight across a floor-mounted channel, a trackless-bottom setup demands structural integrity at the top frame and rigid side jamb anchoring at the base. Before purchasing hardware or modifying door leaves, assess the opening to ensure the header framing shows zero horizontal deflection under load.

Standard residential openings utilizing hollow-core bifold panels (weighing 25 to 40 pounds per pair) require standard 1-3/8 inch top-track assemblies. Solid wood, MDF, or glass-paneled doors (weighing 50 to 125 pounds per pair) require commercial-grade, top-hung heavy-duty tracks equipped with ball-bearing tandem rollers and heavy-gauge steel side-jamb brackets.

Essential Gear, Tools, and Materials

• Measurement & Alignment Tools: Digital laser level (or 48-inch spirit level), plumb bob, tape measure, combination square, pencil.
• Power & Hand Tools: Cordless drill/driver, pilot hole drill bits (1/8-inch, 3/32-inch), countersink bit, hacksaw (for aluminum track trimming), hammer, wooden shim pack.
• Hardware Components: Top-hung aluminum overhead track, heavy-duty top pivot socket assembly, top guide wheel/roller assembly, bottom jamb pivot bracket (floor/jamb combo mount), bottom adjustable pivot pin, heavy-duty non-mortise or flush hinges, rubber track snubber.
• Fasteners: #8 x 1-1/2 inch flat-head wood screws for track mounting, 2-1/2 inch structural wood screws for jamb bracket securing into framing studs.

Prerequisite Knowledge & Technical Standards

• Header Structural Limit: Maximum allowable header deflection is L/360 (less than 1/16 inch under full door load).
• Vertical Plumb Tolerance: Top pivot center must align vertically with the bottom pivot socket within 1/16 inch across the entire opening height.
• Finished Floor Clearance: Maintain a 3/8-inch to 5/8-inch air gap between the bottom edge of the door panels and the finished flooring surface to prevent drag without sacrificing visual privacy.

Project Benchmarks

• Estimated Duration: 2 to 3 hours for a single-opening pair; 4 to 5 hours for double-opening four-panel configurations.
• Skill Level: Intermediate finish carpentry.
• Budget Range: $40 – $120 for hardware kits (excluding door panels).

Step-by-Step Trackless Bifold Door Installation

Step 1: Verify Opening Dimensions and Header Structural Integrity

1. Measure the width of the rough or finished opening at the top, middle, and bottom using a tape measure. Record the smallest measurement to ensure the door leaves will not bind against the side jambs.
2. Measure the vertical height at the left jamb, center, and right jamb. Confirm that the opening height accommodates the height of the door panels plus 1-3/4 inches to 2 inches for the combined top track and bottom bracket clearance.
3. Check the head jamb with a spirit level or laser level. If the header sags in the center by more than 1/8 inch, install hardwood shims behind the head jamb casing or level the header before mounting the hardware track.
4. Locate the underlying wall framing studs behind the side jamb where the stationary pivot will reside. Drive a test screw or use a stud finder to ensure solid 2x4 framing sits directly behind the finish jamb board.

Warning: Never mount a top-hung track solely into drywall using hollow-wall anchors. The repeated dynamic movement of opening and closing the panels will cause anchor shear and structural ceiling failure. Screws must penetrate at least 1-1/4 inches into solid wood headers.

Step 2: Trim and Mount the Overhead Top Track

1. Measure the exact inside width of the top finished jamb. Subtract 1/16 inch from this dimension to allow smooth drop-in clearance for the aluminum overhead track.
2. Transfer this measurement to the top track. Use a combination square to scribe a straight cut line across the aluminum profile.
3. Cut the metal track using a fine-tooth hacksaw (32 teeth per inch). Smooth any rough edges or burrs along the cut line using a metal file or medium-grit sandpaper.
4. Slide the top pivot socket and the rubber track snubber into the top track before securing the track permanently if your hardware design requires end-loading.
5. Position the top track against the head jamb. For flush panel alignment, center the track along the depth of the jamb header (typically 1-3/4 inches from the front edge of a 4-9/16 inch jamb to the centerline of the track).
6. Pre-drill pilot holes through the factory-punched mounting holes in the track using a 1/8-inch drill bit to prevent splitting the header framing.
7. Fasten the track to the header using the provided #8 x 1-1/2 inch wood screws. Leave the screw closest to the pivot end slightly loose until final alignment is established.

Step 3: Position and Secure the Bottom Jamb Pivot Bracket

1. Drop a plumb bob line from the exact center of the top pivot socket down to the floor at the side jamb where the stationary door panel will pivot. Mark this exact center point on the lower side jamb board.
2. Position the bottom jamb bracket against the side jamb. The bracket features a vertical leg that screws into the side jamb and a horizontal foot that rests flat against (or just above) the floor.
3. Align the center axis of the bottom bracket socket directly over the plumb line mark established in Sub-step 1.
4. Mark the pilot hole locations on the side jamb through the bracket mounting slots.
5. Drill pilot holes into the jamb framing using a 1/8-inch drill bit, angling slightly toward the wall framing behind the casing.
6. Anchor the bracket using 2-1/2 inch structural wood screws, driving them through the jamb casing deep into the underlying wall studs. Verify that the bracket sits perfectly level horizontally.

Pro-Tip: In trackless installations, the bottom jamb bracket bears no downward weight—the top track holds the vertical load. However, the bottom bracket withstands high lateral leverage when the door folds. Ensure your fasteners penetrate deeply into the wall studs behind the trim.

Step 4: Prepare the Door Panels and Attach Hardware

1. Lay the two paired door panels flat across a padded workbench or sawhorses. Identify the stationary panel (attaches to the jamb) and the guide panel (slides along the track).
2. Install three non-mortise or mortise hinges to join the two panels together. Space the top and bottom hinges 7 inches from the top and bottom door edges, placing the middle hinge centrally between them. Secure with wood screws, maintaining an even 1/16-inch reveal gap between the panel edges.
3. Press the top pivot pin assembly into the pre-drilled hole on the top edge of the stationary panel. Use a rubber mallet to tap it flush if fitment is tight.
4. Insert the adjustable bottom pivot pin into the bottom pre-drilled hole of the stationary panel. Thread the adjustment nut down so several threads remain visible for vertical height tuning.
5. Install the top guide wheel/roller assembly into the pre-drilled hole on the top edge of the guide panel. Ensure the spring-loaded mechanism depresses and rebounds smoothly without binding.

Step 5: Hang and Adjust the Bifold Door Assembly

1. Lift the folded door assembly into the opening. Angle the top edge toward the overhead track.
2. Insert the top pivot pin into the top pivot socket locked inside the overhead track. Push up firmly until the pin snaps fully into the locking clip mechanism.
3. Depress the spring-loaded top guide wheel and slide it into the continuous channel of the overhead track until it engages securely.
4. Swing the bottom of the stationary door inward and drop the bottom pivot pin into the socket of the bottom jamb bracket mounted on the side wall.
5. Check the vertical plumb of the door along the side jamb using a 48-inch spirit level.
6. Adjust the door height by turning the threaded adjustment nut on the bottom pivot pin using an open-ended wrench. Clockwise rotation raises the door assembly; counterclockwise lowers it. Raise the panels until you achieve a uniform 1/2-inch clearance off the finished floor.
7. Fine-tune the horizontal position of the top panel by loosening the set screw on the top track pivot socket, sliding the socket left or right until the panel reveal against the side jamb is perfectly parallel, and re-tightening the set screw.

Step 6: Install Door Aligners and Calibrate Operation

1. Fold the doors into the fully closed position.
2. For two-panel installations, slide the rubber track snubber inside the overhead rail until it rests tightly against the top guide wheel roller when the door is closed. Fasten the snubber set-screw into place. This prevents the door from rebounding open.

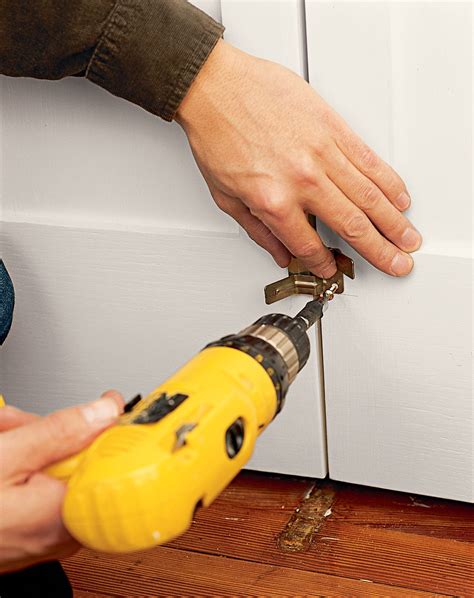

3. For four-panel installations (double bifold sets opening from the center), attach surface-mounted metal door aligners to the back face of the two lead guide panels. Mount them approximately 12 inches up from the bottom edge of the doors.
4. Adjust the alignment fingers so that when both door pairs meet in the center, the fingers interlock, holding the middle meeting stiles completely flat and flush with each other.
5. Cycle the door through ten full open-and-close operations. Listen for scraping sounds and check that the hardware glides smoothly without binding against the side jambs or finished flooring.

Top-Hung Hardware Specifications & Clearance Metrics

Selecting the correct component tolerances and mechanical load capacities is critical when eliminating the bottom floor track. The following engineering metrics apply to trackless top-hung residential and light commercial bifold systems.

Operational Failures & Field Troubleshooting

Door Scrapes Floor or Drags Along Carpet Edge

• Root Cause: Bottom pivot pin adjustment nut has slipped under the dynamic cycling load, or the ceiling header framing is flexing downward due to insufficient structural support.
• Actionable Fix: Insert an open-ended wrench onto the bottom pivot pin adjustment nut located at the base of the stationary door leaf. Rotate clockwise to elevate the entire door assembly. If the top track binds after raising, inspect the header with a laser level. If deflection is present, reinforce the header by installing an overhead sister stud or structural angle iron above the head jamb before re-leveling the door.

Lead Guide Panel Depresses inward or Sticks Mid-Travel

• Root Cause: Misalignment between the top overhead track and the bottom jamb pivot bracket, causing the door assembly to twist along its vertical axis as it travels.
• Actionable Fix: Hang a plumb bob from the absolute center of the overhead track slot directly over the bottom jamb bracket. Loosen the mounting screws on the bottom jamb bracket and shift it horizontally along its adjustment slots until the center of its receiving socket aligns perfectly with the plumb line. Tighten the mounting screws securely into the wall stud framing.

Top Pivot Pin Pops Out of Track Socket During Folding

• Root Cause: Insufficient vertical spring tension on the top pivot pin socket, or the horizontal distance between the top pivot socket and the side jamb is set too far inward, placing extreme angular leverage on the clip.
• Actionable Fix: Open the door assembly to 90 degrees. Support the bottom of the door with a wooden wedge. Check the locking lever on the top track pivot socket. If the plastic retaining housing is cracked or worn, replace the socket block assembly. Slide the top socket closer to the side jamb (maintaining a precise 1/8-inch jamb gap) to reduce diagonal pull forces during panel contraction.

Double Bifold Doors Do Not Sit Flush in Center When Closed

• Root Cause: Absent or misaligned center door aligners on the backside of the lead panels, or improper tension on the top track rubber snubbers.
• Actionable Fix: Mount surface-type aligner brackets on the back face of both lead panels at a height of 12 inches from the bottom edge. Adjust the brackets horizontally until the catch fingers wedge together tightly upon closure. Slide the rubber track snubbers inside the top track firmly against the guide wheels, securing their set screws so the rollers lock into the snubbers precisely when the doors complete their closing sweep.

Frequently Asked Questions

Can any standard bifold door be installed without a bottom track?

Most standard residential bifold doors can be installed without a bottom track provided you use a top-hung hardware kit rated for the specific weight of your door leaves. The bottom track in conventional kits primarily guides the movement, but trackless systems swap this out for a reinforced overhead track that supports the entire vertical weight and a bottom jamb bracket that anchors the lower pivot point.

How much weight can a top-hung trackless bifold system support?

Standard light-duty top-hung hardware supports up to 30 pounds per panel (60 pounds per pair), which accommodates most hollow-core doors. Commercial-grade or heavy-duty architectural top-hung hardware equipped with steel ball-bearing rollers can easily support solid wood, MDF, or mirrored panels weighing between 75 and 125 pounds per panel.

What holds the bottom of the bifold door in place without a floor track?

The base of the bifold assembly is secured by a specialized bottom jamb pivot bracket. This bracket mounts directly to the vertical side jamb and anchors into the wall framing studs at floor level. It holds the bottom pivot pin of the stationary door leaf firmly in place while allowing it to rotate smoothly, completely eliminating the need for a metal track running across the floor opening.

How do I stop trackless bifold doors from swinging out at the bottom?

Trackless bifold doors are stabilized by the rigid geometric connection between the top pivot socket, the bottom jamb bracket, and the spring-loaded top guide wheel running inside the overhead track. When properly installed, plumbed, and fitted with rubber track snubbers and center door aligners, the structural tension prevents the door panels from swinging or pushing outward.

Can I install trackless bifold doors over carpeted floors?

Yes, trackless bifold hardware is ideal for carpeted openings because it eliminates the need to screw a metal track down through carpet fibers and padding. Ensure you set the bottom jamb bracket height high enough so the door leaves maintain a 1/2-inch clearance above the carpet pile, allowing the panels to fold without dragging across the carpet fibers.
