How To Hang Cellular Blinds: A Professional Installation Guide
Hanging cellular blinds requires precise measurements and careful bracket alignment to ensure smooth operation and optimal thermal efficiency. This comprehensive guide outlines the exact tools, inside and outside mount procedures, and troubleshooting steps needed to achieve a flawless, professional-grade window treatment installation.
Pre-Installation Preparation and Equipment Checklist
Successful installation of honeycomb shades hinges on accurate preparation, proper tool selection, and an understanding of your window frame's structural constraints. Cellular shades trap air within their distinct hexagonal pockets to provide superior insulation, but their hardware requires stable mounting surfaces to prevent sagging or operational binding.
Before starting, clear the window workspace and assemble the required materials. Allocate roughly thirty to forty-five minutes per window for a standard installation.
- Essential Tools and Hardware: Power drill, 1/16-inch drill bit (for pilot holes), Phillips head screwdriver bit, metal tape measure, pencil, sturdy step ladder, cellular shade brackets, and mounting screws provided by the manufacturer.
- Prerequisite Checks: Verify whether you are executing an inside mount (recessed inside the window frame) or an outside mount (mounted on the wall or trim surrounding the window). Ensure there is a minimum depth clearance of at least 3/4 inch for inside mounts, or up to 2 inches for flush-inside mounts, depending on the specific headrail profile.
- Estimated Budget and Time: Standard DIY installation requires no specialized contractor expenses, only basic household tools, and takes approximately 30 minutes for a single window.
Step-by-Step Cellular Blind Installation Workflow
Step 1: Measuring and Marking Bracket Positions
Begin by determining the mounting configuration. For an inside mount, measure the depth of the window frame to ensure the headrail will clear any window cranks, handles, or trim work. Position the left and right mounting brackets approximately two to three inches inward from the outer edges of the window frame to distribute the weight evenly.
If your cellular shade is wider than thirty-six inches, locate and mark the position for one or more intermediate support brackets evenly spaced between the end brackets. Hold each bracket firmly against the mounting surface, and use a pencil to mark the screw hole locations through the bracket slots.
Pro-Tip: Always double-check your level across all bracket marks. Even a slight tilt in the initial bracket placement will cause the cellular shades to telescope or bind unevenly when raised and lowered.
Step 2: Drilling Pilot Holes and Securing Brackets
Using a power drill fitted with a 1/16-inch drill bit, carefully drill pilot holes into your pencil marks. If you are mounting into bare drywall or plaster for an outside mount, insert appropriate plastic wall anchors into the drilled holes before proceeding.
Place the brackets back over the drilled holes and secure them tightly using the provided mounting screws and a screwdriver bit. Do not over-tighten the screws, as stripping the screw heads or cracking the plastic brackets will compromise the stability of the window covering. Ensure the locking tabs or front lips of the installed brackets face outward or downward according to your specific manufacturer's instructions.
Warning: Never screw directly into vinyl window frames without pre-drilling, as the material can easily crack or shatter under high torque.
Step 3: Mounting the Cellular Blind Headrail
Angle the cellular shade headrail so that the front lip catches securely onto the front edge of the installed mounting brackets. Push the back of the headrail upward and toward the window until you hear a distinct snapping sound or the mounting clips lock firmly into place over the top and back edges of the headrail.
Gently tug downward on the headrail to verify that all brackets have engaged and locked properly. If the headrail feels loose or wobbles, unclip it and adjust the bracket positioning before proceeding.
Step 4: Attaching Valance Clips and Testing Operation
If your cellular shade came with a decorative valance or cornice, clip the valance clips directly onto the front of the headrail at the designated spacing points, then snap the valance piece into the clips until flush.
Lower and raise the cellular blind completely using the cordless handle, continuous cord loop, or motorized remote control to test the mechanical operation. The fabric stack should compress evenly without catching on the window sill or frame edges.
Cellular Shades — Kim's Drapery and Blinds
Comparative Analysis of Mounting Options and Hardware
| Mounting Type | Minimum Depth Clearance | Best Applied Surface | Primary Advantage | Potential Limitation |
|---|---|---|---|---|
| Inside Mount | 3/4 inch to 2 inches | Wood, aluminum, or vinyl window casing | Clean, architectural look that exposes window trim | Requires precise frame squareness and adequate depth |
| Outside Mount | 0 inches (Flat wall/trim) | Drywall, plaster, or wooden window trim | Maximizes light blockage and hides uneven windows | Extends outward into the room space |
| Ceiling Mount | 1 inch flat surface | Overhead drywall or concrete headers | Ideal for sliding glass doors or floor-to-ceiling windows | Requires locating overhead ceiling joists or heavy-duty anchors |
Troubleshooting Common Cellular Blind Installation Issues
- Uneven Lowering or Telescoping
- Root Cause: The mounting brackets are not level, or the internal cord spools are misaligned due to uneven tension.
- Actionable Fix: Unclip the headrail and use a spirit level to check the brackets. Shim the low bracket with a small piece of cardboard or adjust its screw height until completely level. For cordless shades that telescope to one side, gently pull the bottom rail all the way down, then give a firm tug on the lower side to realign the internal clutch mechanism.
- Headrail Will Not Click Into Brackets
- Root Cause: The brackets are installed too tightly against the wall, or the headrail is being pushed in at the wrong angle.
- Actionable Fix: Loosen the bracket screws slightly to allow a millimeter of play. Engage the front lip of the headrail first, then use upward pressure on the back edge to snap it into the locking tab.
- Fabric Snagging on Window Handles or Cranks
- Root Cause: Insufficient depth clearance during an inside mount, causing the fabric pleats to rub against protruding hardware.
- Actionable Fix: Switch from an inside mount to an outside mount using L-brackets or spacer blocks to push the headrail forward past the obstruction.
Frequently Asked Questions
Can cellular blinds be installed without drilling holes?

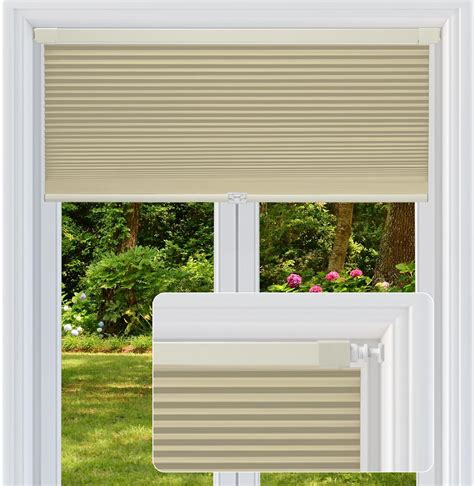

Yes, certain manufacturers offer no-drill cellular shade systems that utilize heavy-duty spring-loaded tension brackets or specialized adhesive mounting pads designed to fit tightly inside standard window frames. These options are ideal for renters or historic homes where drilling into window casings is prohibited.
How do I measure accurately for an inside mount cellular blind?
Measure the exact width of the window opening at the top, middle, and bottom, and use the narrowest measurement rounded down to the nearest 1/8 inch. Next, measure the exact height from the top inside edge of the window casing down to the sill in at least three places, using the longest vertical measurement.
What is the difference between single-cell and double-cell shades?
Single-cell shades feature one layer of hexagonal honeycomb pockets, offering standard insulation and light control. Double-cell shades feature a cell-within-a-cell construction that adds an extra layer of trapped air, significantly improving thermal performance and sound dampening.
How do I fix a cordless cellular shade that won't stay up?
If a cordless shade drifts downward, the internal spring tension has likely slipped. Fully lower the shade to the window sill, grasp the bottom rail with both hands, and gently cycle the shade up and down three to five times to re-engage the internal tension clutch.
