How To Find Yield Stress From Stress Strain Curve: Complete Engineering Guide

Finding yield stress from an engineering stress-strain curve requires identifying the transition point where elastic deformation ends and plastic deformation begins. By applying standardized graphical methods such as the 0.2 percent offset technique governed by ASTM E8 and ISO 6892 standards, engineers can accurately determine this critical material property for structural design.

Pre-Procedure Engineering and Testing Setup

Determining yield stress accurately relies upon acquiring a clean engineering stress-strain curve from a uniaxial tensile test performed on a universal testing machine. The integrity of your calculation depends directly on proper initial data acquisition, strict adherence to testing standards, and correct axis scaling.

• Essential Gear & Tools: Universal testing machine (UTM), extensometer for accurate strain measurement, and data acquisition software capable of recording load versus elongation data.
• Mandatory Standards & Knowledge: Familiarity with ASTM E8/E8M (metallic materials), ASTM D638 (plastics), ISO 6892, and Hooke's Law governing linear-elastic behavior.
• Execution Benchmarks: A testing strain rate ranging from 0.005 to 0.05 per minute, with a post-test dataset consisting of thousands of discrete stress-strain coordinate pairs.

Step-by-Step Methodology for Yield Point Identification

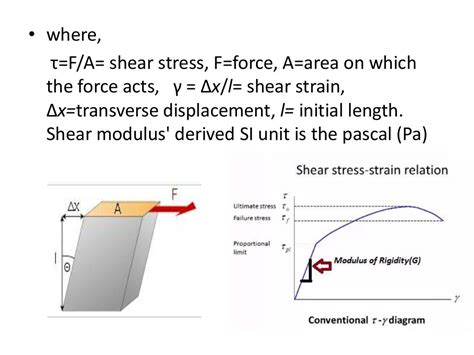

Step 1: Identify the Elastic Region and Proportional Limit

Examine the initial portion of the stress-strain curve where the plotted line forms a straight, linear path originating from the zero point. In this elastic region, stress is directly proportional to strain, meaning the material will return to its original shape if the load is removed. Locate the proportional limit, which is the upper boundary of this straight line where linearity ceases.

Pro-Tip: Ensure your software uses true engineering stress (force divided by original cross-sectional area) and engineering strain (change in length divided by original gauge length) for standard offset calculations.

Step 2: Calculate or Locate Young's Modulus (Slope)

Determine the slope of the linear-elastic region to find Young's modulus (the modulus of elasticity, denoted as $E$). This is calculated by taking the change in stress divided by the change in strain ($\Delta \sigma / \Delta \epsilon$) anywhere along the straight-line portion. This numerical slope value dictates the angular steepness of the offset line you will construct in the next phase.

Step 3: Apply the 0.2 Percent Offset Method for Ductile Materials

For materials that do not exhibit a distinct yield point (such as most aluminum alloys and austenitic stainless steels), draw a parallel line offset to the right along the strain axis. Locate a strain value of 0.002 (representing 0.2 percent offset) on the horizontal strain axis. Draw a construction line starting from this 0.002 coordinate, ensuring the line has a slope exactly equal to Young's modulus found in Step 2.

Warning: Double-check your axis units. If your strain axis is expressed in percentage rather than fractional units, the offset starting point is 0.2 percent instead of 0.002.

Step 4: Locate the Yield Strength Intersect Point

Trace the constructed offset line upward and to the right until it intersects the recorded stress-strain curve. The exact point where this offset line crosses or intersects the experimental curve represents the yield point of the material. Read the corresponding stress value on the vertical stress axis at this intersection to find the 0.2 percent offset yield strength.

Step 5: Identify Upper and Lower Yield Points for Steels

For structural carbon steels and low-alloy steels that exhibit discontinuous yielding, bypass the offset method entirely. Look at the curve where it abruptly stops being linear and drops or fluctuates in load, creating a distinct peak known as the upper yield point. Measure the lowest stress trough immediately following this peak to establish the lower yield point, which is typically used for conservative structural calculations.

Summary of Material Yield Determination Methods

Common Data Analysis Failures and Analytical Fixes

• Root Cause: Incorrect slope of the offset line due to machine compliance or slippage in the extensometer grips during early loading.


  • Actionable Fix: Disregard the initial toe region of the curve caused by specimen settling, and re-establish the linear elastic slope using a higher-fidelity range (e.g., between 10 percent and 40 percent of ultimate load).
• Root Cause: Using engineering stress instead of true stress for high-strain applications, leading to inaccurate plastic deformation modeling.


  • Actionable Fix: Convert engineering values to true stress ($\sigma_T = \sigma(1 + \epsilon)$) and true strain ($\epsilon_T = \ln(1 + \epsilon)$) before performing advanced yield and strain-hardening evaluations.
• Root Cause: Misinterpreting dual yield points in low-carbon steel, resulting in an overly conservative or unconservative yield strength value.


  • Actionable Fix: Always specify the lower yield point for structural steel design calculations, as it represents the stress level at which plastic deformation can continue steadily under constant load.

Frequently Asked Questions

What is the difference between yield stress and ultimate tensile strength?

Yield stress marks the exact boundary where elastic deformation transitions into permanent plastic deformation. Ultimate tensile strength represents the maximum stress the material can endure before necking and eventual fracture occur.

Can you find yield stress without a computer or software?

Yes, you can find yield stress manually by printing the stress-strain curve on grid paper, using a straightedge to match the slope of the elastic region, and drawing a parallel line shifted right by 0.002 strain units. The intersection point on the graph gives the yield strength value when referenced against the stress axis.

Why is a 0.2 percent offset standard used for metals?

Most engineering metals do not exhibit a sudden, unambiguous yield point. The 0.2 percent (0.002 strain) offset provides a standardized, universally accepted convention that defines a permissible amount of permanent plastic strain—small enough to prevent structural distortion, yet large enough to be measured reliably.

How does temperature affect the yield stress on a stress-strain curve?

As ambient or testing temperatures increase, thermal energy assists dislocation movement within the crystal lattice of the material. This phenomenon lowers both Young's modulus and the overall yield stress, resulting in a stress-strain curve that shifts downward and displays increased ductility.
