How To Dig A Post Hole: The Definitive Guide For Fences, Decks, And Structural Supports

Digging a structural post hole requires accounting for the local frost line, soil composition, and exact dimensional ratios to ensure long-term load-bearing stability. By following precise excavation techniques, setting proper diameters, and incorporating a crushed-stone drainage base, you can prevent structural shifting, frost heave, and premature post decay.

Pre-Operation & Equipment Checklist

Executing a professional-grade installation relies on proper site preparation, safety checks, and equipment allocation. Before breaking ground, you must verify utility locations and gather the precise implements required for manual or mechanical excavation.

• Essential Tools & Gear: Fiberglass-handled post hole digger, heavy-duty round-point shovel, tamper bar, clamshell digger or motorized auger, post hole leveling tool, wheelbarrow, masonry string, wooden stakes, claw hammer, heavy-duty work gloves, steel-toed boots, and safety glasses.
• Materials & Infrastructure: Sized pressure-treated lumber or structural posts, high-strength concrete mix or crushed gravel, clean 3/4-inch drainage gravel, water source, and quick-setting expanding foam or bracing lumber.
• Mandatory Prerequisites: Contact 811 to schedule free underground utility marking at least 48 to 72 hours prior to digging. Check local municipal zoning laws for minimum depth requirements, property setbacks, and permit mandates.
• Benchmarks: Estimated project duration is 1 to 2 hours per hole depending on soil density. Average budget ranges from twenty to fifty dollars per hole for materials, fasteners, and rental equipment.

Step-by-Step Earthwork Execution

Step 1: Site Layout and String Line Alignment

Establish the exact boundary of your project by driving wooden stakes into the ground at each terminal point and pulling a tight masonry string line to mark the fence line or deck perimeter. Measure out center-to-center spans for individual posts according to your construction blueprints or panel sizing. Mark the center point of each hole directly on the ground using marking paint or flour.

Pro-Tip: Measure diagonally from corner stake to corner stake; when the diagonal measurements match, your layout is square and ready for excavation.

Step 2: Surface Breaking and Topsoil Removal

Use a round-point shovel to clear away turf, roots, and topsoil within a twelve-inch radius around your center mark. Removing the topsoil prevents organic material from contaminating your backfill and gives your post hole digger a flat, stable surface to bite into. Toss this loose dirt into a wheelbarrow for later site restoration.

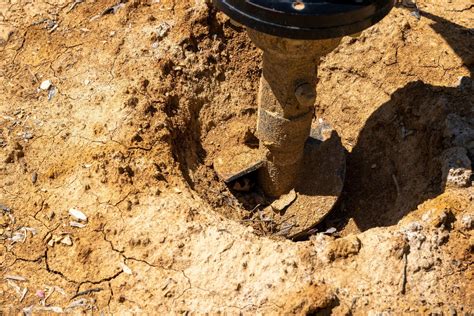

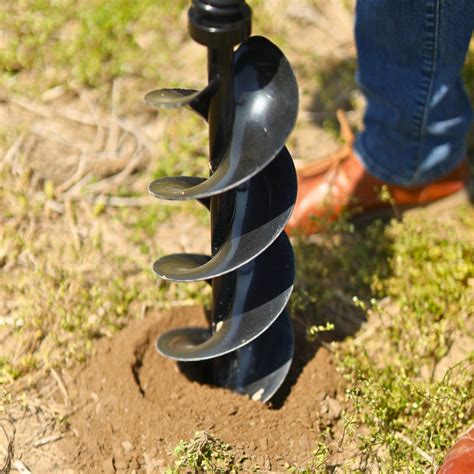

Step 3: Mechanical or Manual Excavation

Drive your post hole digger or mechanical auger straight down into the marked center point. If using a manual clamshell digger, plunge the blades into the soil with force, squeeze the handles together to trap the dirt, and lift the earth straight out of the shaft. Empty the soil at least two feet away from the hole to prevent it from sliding back in. Alternate between the digger and a digging bar to break up dense clay, hardpan, or small rocks.

Warning: Never force a motorized auger if it binds against a large rock or root. Shut off the engine immediately to prevent wrist injury or equipment damage caused by sudden torque kickback.

Step 4: Reaching Frost Line Depth and Proper Sizing

Continue digging until your hole meets or exceeds the local frost line depth, ensuring the bottom of the excavation sits in undisturbed, virgin soil rather than loose fill dirt. Standard structural post holes should be excavated to a depth equal to one-third of the total post length above ground, plus six inches for a gravel base. The diameter of the hole must be three times the width of the post, meaning a standard four-by-four post requires a hole at least twelve inches wide.

Step 5: Establishing the Drainage Base and Soil Compaction

Pour a six-inch layer of clean 3/4-inch crushed gravel into the bottom of the excavated hole and compact it thoroughly using a heavy tamper bar. This gravel bed acts as a drainage reservoir, allowing subsurface moisture to drain away from the bottom of the wood or metal post, which drastically extends its structural lifespan.

Soil Matrix and Excavation Method Selection

Common Site Failures and Field Fixes

• Root Obstruction:


  • Root Cause: Tree roots crossing the excavation path prevent the post hole digger from reaching the required depth.
  • Actionable Fix: Sever roots smaller than two inches with a sharp mattock or pruning saw. Avoid cutting major structural tree roots close to mature trees to prevent tree decline.
• Hole Collapsing in Wet Sand:


  • Root Cause: High water table or loose, saturated granular soils cause the upper walls of the hole to cave inward.
  • Actionable Fix: Slide a cardboard sonotube into the hole as you excavate deeper, backfilling the exterior perimeter with compacted soil to hold the tube steady.
• Post Shift During Concrete Cure:


  • Root Cause: Failure to properly brace the post allows it to drift out of plumb while wet concrete sets.
  • Actionable Fix: Attach temporary two-by-four wooden braces to the upper third of the post, anchor them to ground stakes, and verify plumb status with a post level before the concrete hardens.
• Inadequate Frost Depth Setting:


  • Root Cause: Digging too shallow leaves the bottom of the footer vulnerable to freezing expansion.
  • Actionable Fix: Excavate the hole deeper to clear the local frost line, or completely remove the post and re-pour the foundation footer at the correct depth.

Frequently Asked Questions

How deep should a post hole be dug?

A post hole should generally be dug to a depth equal to one-third to one-half of the total length of the post above ground, with a minimum depth that clears your local frost line. For a standard six-foot privacy fence, this translates to a hole depth of at least thirty inches to three feet.

Do I always need to use concrete in a post hole?

Concrete is recommended for structural applications like decks, pergolas, and heavy gates to maximize load-bearing capacity and wind resistance. For lightweight garden fences or temporary structures, tightly compacted crushed gravel and native soil often provide adequate stability while allowing easier future removal.

How wide should a post hole be?

The diameter of your post hole should be approximately three times the width of the post itself. For example, a standard four-by-four wood post, which actually measures 3.5 inches across, requires a hole width of ten to twelve inches to allow enough room for structural backfill.

What is the best way to keep a post from rotting in the ground?

To maximize post longevity, excavate an extra six inches of depth below your post and fill it with crushed gravel to promote drainage. Coat any embedded wood with an approved preservative sealant, and slope the concrete surface slightly away from the post base so water sheds outward.

Can I dig post holes when the ground is frozen?

Digging post holes through frozen ground is extremely difficult and requires heavy-duty mechanical equipment like hydraulic augers or jackhammers. If possible, wait until the ground thaws completely, or use ground-thawing blankets to soften the topsoil before excavation.

Master your next outdoor building project by following precise excavation dimensions and proper drainage protocols. Put these professional earthwork techniques to work today to ensure your fences and decks stand strong for decades.
