How To Decrease Excel File Size: The Definitive Optimization Guide

Bloated Microsoft Excel workbooks consume unnecessary storage, trigger synchronization timeouts, and cause severe application lag during calculation cycles. By systematically eliminating redundant formatting, compressing embedded raster graphics, purging invisible XML metadata, and replacing volatile formulas with static values, you can routinely reduce file sizes by 80% to 95% while maintaining complete data integrity.

Pre-Operation & Audit Checklist for Bloated Workbooks

Before altering cell structures or deleting worksheets, you must evaluate the root causes of file inflation. Modern Excel files utilizing the Office Open XML standard (.xlsx, .xlsm, .xlsb) are essentially compressed zip archives containing structured markup, style sheets, and binary objects. When workbooks swell beyond 10 megabytes without millions of rows of raw data, the culprit is almost always hidden object accumulation, excessive conditional formatting rules, or corrupted calculation chains.

• Essential software and tools: Microsoft Excel Desktop (Office 365, Excel 2019, or Excel 2021), 7-Zip or WinRAR (for manual XML inspection), and native Windows File Explorer properties.
• Mandatory prerequisite knowledge: Understanding the difference between explicit data storage and automatic XML formatting expansion, familiarity with volatile functions (NOW, TODAY, OFFSET, INDIRECT), and knowledge of the Excel grid boundary limit (1,048,576 rows by 16,384 columns).
• Estimated duration and benchmarks: A standard audit and cleanup operation takes between 15 and 30 minutes, with a targeted reduction benchmark of decreasing a 50MB file to under 5MB.

Step-by-Step Workbook Reduction Workflow

Step 1: Identify and Strip Unused Cell Formatting and the Used Range

Excel tracks the "Used Range"—the bounding box containing data, formatting, or formulas ever applied to the worksheet. If you apply a background fill color or border to an entire column (such as column Z through XFD), Excel's underlying XML engine records every single cell as active, drastically inflating file weight.

1. Navigate to the bottom-right corner of your worksheet data and press Ctrl + End to jump to the final cell recognized by Excel as part of the used range.
2. If this cell is far beyond your actual data set, clear all formatting from the blank rows and columns. Select the entire blank row beneath your data, press Ctrl + Shift + Down Arrow to select down to row 1,048,576, right-click, and select Delete.
3. Repeat the exact same sweep horizontally for unused columns to the right of your dataset.
4. Save the workbook to force the XML structure to purge the unreferenced coordinate maps.

Pro-Tip: If deleting rows and columns does not reset the used range, save the file as a binary workbook (.xlsb), close it, reopen it, and save it back to your preferred format. This forces a complete memory flush of the underlying worksheet matrix.

Step 2: Compress or Remove Embedded Images and Raster Graphics

High-resolution corporate logos, uncropped screenshots, and raw digital photos pasted into worksheets are the primary drivers of massive file inflation. Excel does not automatically downsample inserted images unless instructed.

1. Select any image within your workbook to activate the Picture Format contextual tab in the Excel ribbon.
2. Click the Compress Pictures command in the Adjust group.
3. Uncheck the box that reads "Apply only to this picture" so the setting applies globally to all embedded images in the file.
4. Select Email (96 ppi) or Print (220 ppi) depending on your final distribution requirements, and ensure the checkbox for "Delete cropped areas of pictures" is checked before confirming.

Warning: Avoid pasting images directly from the clipboard as Windows Bitmap (BMP) or device-independent bitmap formats. Always save images as compressed JPEGs or PNGs to disk before inserting them into your spreadsheets.

Step 3: Purge Redundant Conditional Formatting Rules

Overlapping or duplicate conditional formatting rules multiply exponentially as spreadsheets grow, injecting thousands of redundant styling instructions into the styles.xml file.

1. Navigate to the Home tab on the ribbon, click Conditional Formatting, and select Clear Rules.
2. Choose Clear Rules from Entire Sheet to wipe out legacy formatting bugs.
3. Reapply clean, consolidated rules strictly targeting the necessary data ranges, avoiding whole-column conditional formatting applications wherever possible.

Step 4: Convert Volatile Formulas and Unused Pivot Caches to Static Values

Formulas that recalculate every time any cell in the workbook changes force Excel into continuous background calculation loops. Furthermore, every PivotTable maintains an independent hidden data cache that duplicates the source data in memory.

1. Select your historical report ranges, press Ctrl + C to copy, right-click, and select Paste as Values to strip heavy calculation formulas that no longer require dynamic updates.

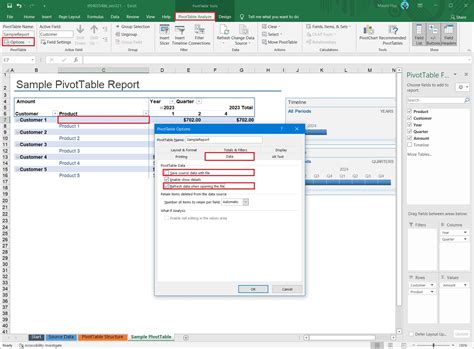

2. Open the PivotTable Options dialog, go to the Data tab, and uncheck "Save source data with file cache" if you can refresh the data dynamically upon opening.
3. Delete obsolete worksheets entirely rather than hiding them, as hidden worksheets continue to harbor active data arrays, connections, and calculation dependencies.

File Format Comparison and Storage Efficiency

Common Workbook Bloat Failures and Field Fixes

• Root Cause: Invisible drawing objects, text boxes, or stray shapes layered across the worksheet canvas.


  • Actionable Fix: Press F5 to open the Go To dialog, click Special, select Objects, and press Delete to instantly remove all hidden shapes, comment boxes, and rogue images.
• Root Cause: Corrupted calculation chains expanding the XML footprint through unreferenced formula remnants.


  • Actionable Fix: Save the bloated file format directly as an Excel Binary Workbook (.xlsb). This converts the verbose text-based XML markup into a compact binary structure, instantly shedding up to 50% of the file weight.
• Root Cause: Excessive external links and broken named ranges pointing to missing workbooks.


  • Actionable Fix: Go to the Data tab, click Edit Links, and break or update any dangling connections to external files that are bloating the internal dependency tree.

Frequently Asked Questions

Why does my Excel file remain large even after deleting all data?

Excel retains the historical "Used Range" memory even when cell values are deleted. To fix this, you must manually delete empty rows and columns beyond your actual data, save the file, or convert the format to .xlsb and back to .xlsx to force a clean memory compaction.

Is it safe to save all my workbooks as .xlsb files?

Yes, the Excel Binary Workbook (.xlsb) format is fully supported by Microsoft, opens faster, handles macros, and consumes significantly less disk space. However, avoid using .xlsb if your organization relies on strict third-party XML parsing tools or collaborative web-based Excel Online workflows that require standard .xlsx formatting.

How do I find out what is actually making my Excel file so big?

Change your file extension from .xlsx to .zip by renaming the file in Windows Explorer. Right-click the zip folder, extract its contents, and open the xl subfolder where you can inspect the sizes of individual XML components like worksheets, media files, and the styles.xml document to pinpoint the exact source of bloat.

Does removing hidden worksheets decrease file size?

Yes, hidden worksheets store active data, formulas, and formatting just like visible sheets. Completely deleting unused or legacy tabs permanently removes their underlying XML markup from the workbook archive.

Implement the binary format conversion workflow today to instantly slash your storage footprint and accelerate calculation speeds across all your large operational spreadsheets.
