How To Connect A Thermostat With 2 Wires: Complete Installation And Troubleshooting Guide
Connecting a 2-wire thermostat requires linking a single power wire and a single control wire to designated terminals, operating entirely on a 24-volt alternating current circuit without the need for a common wire. This configuration is standard for basic heating-only systems like gas boilers, furnaces, and floor heaters where power is simply looped through the thermostat acting as a basic mechanical switch.
Pre-Operation & Equipment Checklist
A successful thermostat replacement project depends on careful pre-planning, verifying electrical compatibility, and gathering the necessary tools before touching any wiring. Because 2-wire systems deal with low-voltage alternating current circuits, the risk of severe electrical shock is minimal, but safety and systematic verification remain vital to protect your HVAC equipment control board.
- Essential Gear, Tools, and Materials:
- New 2-wire compatible thermostat (mechanical or digital battery-operated model)
- Number 1 and Number 2 Phillips head screwdrivers
- Flathead precision screwdriver
- Wire strippers and wire cutters
- Non-contact voltage tester or digital multimeter
- Painters tape and a pencil for wire labeling
- Mandatory Prerequisite Knowledge and Standards:
- Verify that your HVAC system operates on a heating-only profile, such as a baseboard heater, furnace, or boiler system.
- Understand that standard 2-wire setups utilize terminal designations typically marked as R (or Rh) and W.
- Confirm whether your new digital thermostat requires auxiliary alkaline batteries to maintain its display and programming schedule, as 2-wire configurations lack a continuous common (C) wire to supply continuous power.
- Budget and Duration Benchmarks:
- Estimated project cost: Twenty to one hundred dollars for standard non-programmable or digital thermostats.
- Estimated completion time: Twenty to thirty minutes for a standard swap.
Step-by-Step 2-Wire Thermostat Installation Workflow
Step 1: Shut Off Power and Remove the Old Faceplate
Before touching any wiring components, go to your main electrical service panel or locate the dedicated power switch next to your furnace or boiler to cut power to the heating system. Unlatch or unscrew the existing thermostat cover from the wall to expose the internal terminal block and connected wires. Use a non-contact voltage tester around the wires to double-check that the 24-volt circuit is completely de-energized, preventing accidental short circuits on the electronic control board.
Warning: Never work on active low-voltage heating circuits without turning off the system power first; dropping a loose wire against a metal chassis can easily blow the 3-amp or 5-amp fuse on your furnace control board.
Step 2: Label and Detach the Existing Wires
Examine the two wires attached to your current thermostat terminals. Typically, one wire connects to a terminal marked R or Rh (Power), and the second wire connects to a terminal marked W (Heat call). Wrap a piece of painters tape around each wire and write its corresponding terminal letter clearly on the tape to avoid mixing them up. Gently loosen the terminal screws and pull the wires free from the old mounting base, ensuring they do not slip back down inside the wall cavity by wrapping them loosely around a pencil or securing them with a clamp.
Step 3: Mount the New Thermostat Backplate
Unscrew and remove the old thermostat wall mount. Hold the new thermostat backplate against the wall, insert a small carpenter's level into the integrated leveling vial, and adjust the positioning until the plate is perfectly plumb. Mark the fastener hole locations on the drywall with a pencil, drill pilot holes if wall anchors are required, and secure the backplate firmly to the wall using the provided mounting screws. Feed your two labeled wires carefully through the central wire-access opening of the new backplate before final tightening.
Step 4: Connect the Wires to the Appropriate Terminals
Strip approximately one-quarter inch of insulation from the ends of your two wires if the copper appears oxidized or damaged. Insert the wire labeled R (or Rh) into the R or Rh terminal on the new thermostat backplate and tighten the terminal screw securely until snug. Insert the wire labeled W into the W (or W1) terminal and tighten its screw down firmly. Tug gently on each individual wire to verify that the clamp holds the conductor securely without slipping.
Pro-Tip: If your new digital thermostat requires batteries, install fresh alkaline batteries into the battery compartment before snapping the unit onto the wall mount to ensure uninterrupted operation.
Step 5: Mount the Thermostat Body and Test the System
Align the main body of the new thermostat directly with the mounted backplate and press it gently until it snaps securely into place. Restore power to your heating system at the breaker box or furnace service switch. Adjust the temperature setpoint on your new thermostat a few degrees above the current room temperature and listen for the furnace or boiler relay to click and ignite within one to two minutes.

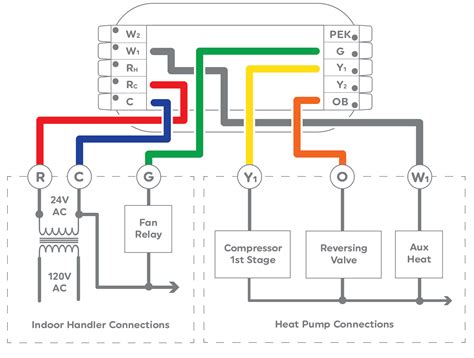

How to Wire a Heat Pump Thermostat: A Step-by-Step Guide - ThermostatNeed
Technical Specifications and Terminal Mapping Matrix
| Terminal Designation | Standard Wire Color | Primary Electrical Function | System Compatibility |
|---|---|---|---|
| R / Rh | Red | Supplies 24V AC power from the heating transformer | All standard heating and cooling systems |
| W / W1 | White | Energizes the heating relay or gas valve upon a call for heat | Furnaces, boilers, and heating-only setups |
| C | Blue or Black | Completes the 24V circuit to provide continuous power | Smart thermostats requiring constant power (requires additional wiring) |
| G | Green | Operates the indoor blower fan independently | Systems requiring continuous or manual fan control |
Common Site Failures and Field Fixes
- Symptom: The thermostat display remains completely blank after installation.
- Root Cause: The digital thermostat requires internal batteries to power its screen, or the furnace fuse blew due to a short circuit during installation.
- Actionable Fix: Install fresh AA or AAA batteries into the thermostat housing. If the screen still fails to illuminate, check the control board inside your furnace to inspect and replace the low-voltage 3-amp or 5-amp blade fuse.
- Symptom: The heating system fails to turn on when the temperature is raised.
- Root Cause: Loose terminal screw connections, or the wires were mistakenly inverted between the R and W terminals.
- Actionable Fix: Turn off the power, remove the thermostat cover, and verify that the red power wire is firmly seated in the R terminal and the white control wire is secured in the W terminal.
- Symptom: The furnace short-cycles, turning on and off rapidly.
- Root Cause: The thermostat is improperly leveled, or an anticipator setting within a mechanical thermostat requires manual adjustment.
- Actionable Fix: Check the backplate with a spirit level to ensure absolute vertical alignment. If using an older mechanical dial thermostat, adjust the metal heat anticipator arm closer to the current amperage draw rating listed on your furnace gas valve.
Frequently Asked Questions
Can I install a smart thermostat with only 2 wires?
Most smart thermostats require a common (C) wire to deliver continuous 24-volt power for their Wi-Fi radios and color displays. However, certain modern smart thermostats include a power extender kit that allows installation on 2-wire systems, or you can use a separate 24-volt plug-in transformer to supply power directly to the C and Rc terminals.
Does wire color matter in a 2-wire thermostat installation?
Wire color conventions—such as red for power and white for heating—are standard industry practices rather than electrical mandates. While matching red to R and white to W is standard practice, the system will function correctly as long as the physical wire connected to the furnace transformer output connects to R and the wire connected to the heating relay connects to W.
Do I need to turn off the main breaker before wiring?
Yes, you should always turn off the power at the main electrical panel or the service switch located near your HVAC unit. Although 2-wire systems operate on low-voltage 24-volt power, dropping a tool or letting bare wires touch can cause an electrical short that ruins the furnace control board transformer.
Why does my new digital thermostat need batteries?
Traditional mechanical thermostats use the current flowing through the two wires to power simple bimetallic strips and mercury switches. Modern digital thermostats require a steady electrical voltage to run their microprocessors and LCD screens; because a 2-wire setup lacks a dedicated common wire to complete a continuous power circuit, it relies on internal batteries.
What should I do if my wall has more than two wires, but my system only uses two?
If your wall cavity contains extra wires—such as yellow, green, or blue conductors—that were not connected to your old thermostat, your system may support additional features like cooling or a fan. Verify your furnace control board terminal connections to see if those extra wires are terminated at the unit, or simply tuck unused wires neatly back into the wall cavity if you only operate a basic heating system.
Upgrade your home heating control with confidence by carefully verifying low-voltage power connections and selecting a reliable thermostat designed for 2-wire compatibility.
