How To Check A Camshaft Position Sensor: A Professional DIY Diagnostic Guide

To accurately check a camshaft position sensor, you must verify its ability to send a consistent 5V or 12V pulse signal to the Engine Control Module (ECM) using a digital multimeter or oscilloscope. Diagnosis involves checking for Diagnostic Trouble Codes like P0340, testing for reference voltage and ground at the sensor harness, and measuring signal frequency or resistance to ensure the sensor detects the reluctor wheel’s rotation.

Essential Diagnostics: Tools and Pre-Test Verification

Before attempting to dismantle engine components or probe electrical harnesses, it is critical to understand the environment in which the Camshaft Position (CMP) sensor operates. The CMP sensor is the "eyes" of the Engine Control Module (ECM), providing data on which cylinder is on its compression stroke. This allows the computer to manage sequential fuel injection and ignition timing. Failure in this component often results in a "no-start" condition, intermittent stalling, or a noticeable drop in fuel economy.

Diagnostic success depends on identifying whether your vehicle utilizes a two-wire Variable Reluctance (VR) sensor or a three-wire Hall Effect sensor. VR sensors generate their own AC voltage as a magnetic field is interrupted, while Hall Effect sensors require a power source to produce a digital square-wave signal.

Required Equipment and Standards:

• Digital Multimeter (DMM): Must have high input impedance (at least 10 Megohms) to prevent damaging sensitive ECM circuits.
• OBD-II Scan Tool: Essential for reading stored fault codes and viewing live data streams.
• Back-Probe Pins: Necessary for testing wires while the connector remains plugged in, ensuring the circuit is under load.
• Basic Hand Tools: A 1/4-inch drive socket set (typically 8mm or 10mm) for sensor removal.
• Safety Gear: Nitrile gloves and eye protection to guard against hot oil and engine debris.
• Duration: 45 to 90 minutes.
• Budget: $0 (if tools are owned) to $150 (if purchasing a mid-range multimeter and scanner).

Mastering the Camshaft Sensor Diagnostic Workflow

The following procedure follows a logical path from non-invasive data collection to deep-circuit electrical testing. Ensure the vehicle is parked on a level surface with the parking brake engaged before beginning.

Step 1: Preliminary OBD-II Analysis and Visual Inspection

Begin by connecting an OBD-II scanner to the port located under the driver-side dashboard. Even if the Check Engine Light is not illuminated, the system may have stored "pending" codes. Look specifically for P0340 (Circuit Malfunction), P0341 (Range/Performance), or P0342 (Low Input).

Once the data is retrieved, locate the sensor on the engine. It is usually found on the top or side of the valve cover, near the timing belt or chain cover. Inspect the wiring harness for signs of "oil wicking," where engine oil leaks into the connector and degrades the pins. Check for frayed wires or heat damage from nearby exhaust manifolds.

Warning: Never disconnect electrical connectors while the ignition is in the "On" position, as this can cause voltage spikes that may fry the ECM.

Step 2: Testing the Power and Ground Circuits

For 3-wire Hall Effect sensors, the sensor cannot function without a reference voltage and a clean ground path. Set your multimeter to DC Volts (20V range).

1. Turn the ignition to the "On" or "Run" position but do not start the engine.
2. Disconnect the sensor harness.
3. Touch the black multimeter lead to the battery negative terminal.
4. Touch the red lead to each of the three pins on the harness side (the side coming from the car).
5. One pin should show 5.0V or 12.0V (Reference Voltage).
6. One pin should show 0V (Ground).
7. The third pin is the Signal Return wire.

To verify the ground, switch your multimeter to the Continuity or Ohms setting. Touch one lead to the ground pin and the other to a clean metal part of the engine block. The resistance should be less than 0.5 Ohms. If you have power and ground, the wiring is likely intact, and the fault lies within the sensor or the signal path.

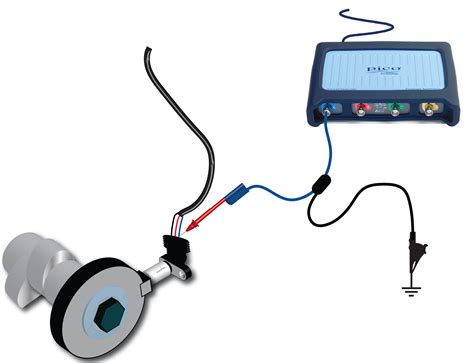

Step 3: Probing the Signal Output (The Dynamic Test)

This is the most definitive test. You must check if the sensor "switches" as the engine rotates.

1. Reconnect the sensor harness.
2. Use a back-probe pin to slide into the back of the connector on the Signal Return wire.
3. Set your multimeter to DC Volts.
4. Connect the red lead to the back-probe pin and the black lead to a solid engine ground.
5. If possible, rotate the engine by hand using a socket and breaker bar on the crankshaft pulley bolt.
6. Observe the multimeter display. On a Hall Effect sensor, the voltage should jump back and forth (e.g., from 0V to 5V) as the reluctor wheel tooth passes the sensor.

If you are performing this test while cranking the engine with the starter, switch your multimeter to the Hertz (Hz) or Frequency setting. A functioning sensor will show a steady frequency reading that increases as engine RPM increases. A reading of 0 Hz while cranking indicates a dead sensor.

Pro-Tip: If you have a 2-wire VR sensor, you can test it for internal resistance. Unplug it and measure across the two pins. Most manufacturers specify between 200 and 900 Ohms. An "OL" (Open Loop) reading means the internal coil is broken.

Step 4: Inspecting the Reluctor Wheel and Air Gap

If the sensor and wiring pass electrical tests but the car still runs poorly, the problem may be mechanical. Remove the sensor from its mounting hole. Look inside the hole with a flashlight to see the reluctor wheel (the notched ring the sensor "reads").

Check for broken teeth, excessive metal shavings, or "sludge" buildup. If the reluctor wheel is loose or the camshaft has excessive end-play, the "air gap" (the tiny space between the sensor tip and the wheel) will be inconsistent, causing signal dropouts. A gap that is too wide—often caused by an incorrect gasket or debris under the sensor mounting flange—will result in a weak signal that the ECM cannot interpret.

Technical Reference: Sensor Output and Resistance Standards

The following table outlines the expected values for the two primary types of camshaft sensors found in modern automotive applications.

Advanced Fault Analysis and Real-World Failure Remedies

Identifying a bad sensor is often only half the battle. In many cases, the sensor fails due to external factors that must be addressed to prevent a repeat failure.

• Scenario: Intermittent Stall When Hot




  • Root Cause: Internal thermal expansion. As the engine reaches operating temperature, the fine copper windings inside a VR sensor or the circuitry in a Hall Effect sensor expand, causing a microscopic break in the circuit.
  • Actionable Fix: Perform the "Heat Gun Test." While the car is idling and the multimeter is connected to the signal wire, carefully apply heat to the sensor with a heat gun. If the signal disappears or the car stalls as the sensor gets hot, the sensor is defective and must be replaced.

• Scenario: P0340 Code After a Timing Belt Service




  • Root Cause: Incorrect timing or a damaged reluctor wheel. If the timing belt is off by even one tooth, the relationship between the crankshaft and camshaft is skewed. The ECM detects this discrepancy and triggers a CMP circuit code, even if the sensor is electrically perfect.
  • Actionable Fix: Verify mechanical timing marks. Use a borescope to inspect the reluctor wheel for any prying damage that may have occurred during the belt or water pump replacement.

• Scenario: Erratic Signal and "Ghost" Codes




  • Root Cause: Electromagnetic Interference (EMI). If the camshaft sensor wires are routed too close to high-voltage components like spark plug wires or the alternator, electrical "noise" can bleed into the signal wire.
  • Actionable Fix: Ensure the sensor wiring maintains its original factory routing. Inspect the shielding on the sensor wires; if the foil or braided shield is torn or not properly grounded, the signal will be corrupted.

Frequently Asked Questions

Can a car run without a camshaft position sensor?

Most modern vehicles will enter "Limp Mode" if the camshaft sensor fails while the engine is running, allowing you to drive at reduced power. However, many engines will not start if the sensor is dead because the ECM cannot determine when to fire the spark plugs or injectors for the initial combustion cycle.

What does a bad camshaft sensor sound like?

The sensor itself is silent, but a failure causes engine symptoms you can hear. These include engine backfiring (due to mistimed ignition), heavy knocking or "pinging" under load, and a sputtering sound from the exhaust during hard acceleration.

Is it necessary to replace both the camshaft and crankshaft sensors at the same time?

While not strictly mandatory, it is highly recommended. These sensors are often of the same age and have been exposed to the same heat cycles. Furthermore, the ECM uses both signals to monitor timing; replacing both ensures a balanced and synchronized signal input for the computer.

How much does it cost to replace a camshaft sensor?

If you perform the work yourself, a replacement sensor typically costs between $30 and $100 depending on the vehicle make and model. A professional repair shop will usually charge between $150 and $300, which includes diagnostic time and labor.

Optimize Your Engine Performance

Accurate diagnostics prevent the "parts cannon" approach to repair, saving you hundreds of dollars in unnecessary component swaps. If your testing confirms a faulty sensor, replace it with a high-quality OEM or equivalent component to ensure long-term engine synchronization and reliability.
