The Complete Guide On How To Change Transfer Case Fluid Like A Professional Mechanic

Changing your transfer case fluid is a vital four-wheel-drive maintenance task that prevents catastrophic gear wear, metallic contamination, and thermal breakdown by replacing degraded lubricants with fresh, manufacturer-specified fluid. By performing this service every 30,000 to 50,000 miles, you extend the operational lifespan of your vehicle's auxiliary gearbox and preserve smooth engagement between high and low ranges.

Pre-Operation & Equipment Checklist

Executing a transfer case fluid change requires careful preparation, the right automotive fluids, and specific hand tools to ensure safety and prevent mechanical damage. This maintenance procedure applies to most part-time and full-time four-wheel-drive (4WD) and all-wheel-drive (AWD) systems found in trucks, SUVs, and crossovers. Before crawling underneath your vehicle, verify that you have all required supplies staged within arm's reach to minimize downtime and prevent fluid spills.

• Essential Gear, Tools, and Materials:


  • 2 to 3 quarts of manufacturer-approved transfer case fluid (commonly ATF Type Dexron VI, Mercon LV, specialized gear oil like 75W-90, or proprietary OEM fluid such as Nissan Matic D or GM AutoTrac II).
  • Fluid transfer pump (manual hand pump or suction gun).
  • 3/8-inch or 1/2-inch drive ratchet or breaker bar (many drain/fill plugs use the square drive directly without a socket).
  • Open-end wrench set or box wrenches if hex-head plugs are utilized.
  • Oil catch pan and shop rags.
  • Automotive floor jack and heavy-duty jack stands (never work under a vehicle supported solely by a hydraulic jack).
  • Replacement crush washers or thread sealant (PTFE tape or liquid thread sealant depending on plug design).
  • Brake parts cleaner and torque wrench.
• Prerequisite Knowledge and Safety Standards:


  • Ensure the vehicle is parked on a level, stable concrete surface with the parking brake firmly engaged and wheel chocks secured behind the rear tires.
  • Consult your owner's manual or service manual to verify exact fluid capacity, fluid specification, and the specific location of the fill and drain plugs.
• Estimated Budget and Duration Benchmarks:


  • Financial Investment: $30 to $100 depending on fluid type and capacity.
  • Time Commitment: 45 to 60 minutes for a standard drain-and-fill procedure.

Step-by-Step Drivetrain Fluid Replacement Workflow

Step 1: Secure the Vehicle and Bring the Fluid to Operating Temperature

Drive the vehicle for approximately 5 to 10 miles to warm up the existing transfer case fluid. Warm fluid flows significantly faster and suspends harmful metallic debris and sludge particles, ensuring they are completely evacuated during the draining process. Once returned to your workspace, securely elevate the vehicle using a hydraulic floor jack and position heavy-duty jack stands under the factory-approved frame pinch welds or lift points. Shake the vehicle gently while on the jack stands to verify absolute stability before sliding underneath.

Warning: Never crawl underneath a vehicle supported only by a hydraulic jack. Always use properly rated jack stands and chock the wheels to prevent unexpected movement.

Step 2: Locate and Remove the Fill Plug First

Slide underneath the center of the vehicle and locate the transfer case housing, which sits behind the transmission and distributes power to the front and rear axles.

Pro-Tip: Always loosen and remove the upper fill plug before removing the lower drain plug. If you drain the fluid first and discover that the fill plug is seized or stripped, you will be left with an empty transfer case and no way to refill it.

Position your catch pan directly beneath the fill plug area. Insert your ratchet drive or appropriate wrench into the fill plug and turn counter-clockwise to loosen it. Clean the threads of the plug and inspect the sealing washer for cracking or deformation.

Step 3: Drain the Contaminated Fluid

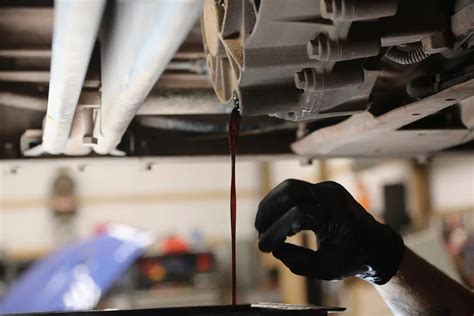

Position your oil catch pan beneath the lower drain plug of the transfer case housing. Using your ratchet or breaker bar, loosen the drain plug slowly to allow the old fluid to empty in a controlled stream into the pan. Observe the color and consistency of the draining fluid; dark black fluid indicates thermal breakdown, while a milky, pinkish-brown mixture indicates water contamination from deep water crossings or a failing front shaft seal. Allow the transfer case to drain completely until the stream slows to an occasional drip, which typically takes 5 to 10 minutes.

Step 4: Clean and Reinstall the Drain Plug

While the transfer case continues to drain, wipe down the drain plug with a clean shop rag and brake parts cleaner. Inspect the magnetic tip of the drain plug, if equipped, which is designed to capture microscopic metal shavings. A light fuzzing of fine metallic paste is normal, but large metal chunks or needle bearings indicate internal mechanical failure requiring professional diagnosis. Install a new crush washer onto the drain plug, thread it into the housing by hand to prevent cross-threading, and torque it down to the manufacturer's specification using a torque wrench (typically between 20 to 30 ft-lbs, depending on the specific model).

Step 5: Pump Fresh Fluid into the Transfer Case

Insert the suction hose of your fluid transfer pump into the fresh fluid container and place the discharge nozzle securely into the upper fill hole of the transfer case. Pump the fresh fluid into the housing until it reaches the bottom lip of the fill plug opening. You will know the transfer case is completely full when a thin, steady trickle of fresh fluid begins to spill back out of the fill hole. Wipe away any excess fluid from the housing exterior with a shop rag.

Step 6: Install the Fill Plug and Perform a Test Drive

Thread the cleaned fill plug with its new sealing washer back into the upper hole and tighten it securely to factory torque specifications. Spray any spilled fluid off the frame or exhaust pipes with brake parts cleaner to prevent burning smells and smoke during your test drive. Lower the vehicle safely off the jack stands, start the engine, and cycle the 4WD system through its various modes (2HI, 4HI, 4LO) while stationary to circulate the new fluid throughout the internal gears, chain, and pump. Take the vehicle for a short 5-minute test drive, then return home to quickly inspect the transfer case housing underneath with a flashlight to verify that neither plug is leaking.

Transfer Case Fluid Specifications and Comparison Matrix

Common Draining and Refilling Complications and Field Fixes

• Root Cause: Severely seized or rounded-off fill/drain plugs due to years of corrosion and over-tightening by previous mechanics.


  • Actionable Fix: Apply a penetrating catalyst oil around the plug threads and let it soak for 15 minutes. If the head is rounded, use locking pliers (Vise-Grips), a specialized bolt-extractor socket, or tap a slightly smaller metric or standard socket onto the plug head with a hammer to gain grip. Always replace damaged plugs with new OEM units.
• Root Cause: Stripped aluminum housing threads resulting from cross-threading a steel plug during installation.


  • Actionable Fix: Clean the damaged threads carefully. If minor, chase the threads using an appropriate thread-restorer tap. For severe stripping, install a threaded wire thread insert (such as a Helicoil kit) or replace the transfer case rear housing half.
• Root Cause: Milky, water-contaminated fluid discovered upon opening the drain plug.


  • Actionable Fix: Water enters the transfer case through a submerged upper breather tube during deep water crossings or via worn input/output shaft seals. Drain the contaminated fluid completely, refill with cheap flush fluid, drive for 5 miles, drain it again to purge residual moisture, and finally fill with fresh high-quality fluid. Inspect and extend the breather tube if necessary.
• Root Cause: Persistent fluid seepage around the plug threads after service.


  • Actionable Fix: The crush washer was reused or crushed unevenly, or the plug was under-torqued. Loosen the plug slightly, drain a minimal amount of fluid if needed, install a brand-new aluminum or copper crush washer, apply a thin layer of thread sealant safe for gear oil, and torque to exact factory specifications.

Frequently Asked Questions

How often should I change my transfer case fluid?

Most automotive manufacturers recommend changing transfer case fluid every 30,000 to 50,000 miles under normal driving conditions. If you frequently engage four-wheel drive, tow heavy trailers, drive through deep water, or operate in severe dusty environments, reduce this service interval to every 25,000 miles to prevent premature internal wear.

Can I use regular engine oil or automatic transmission fluid in my transfer case?

Never use engine oil unless explicitly stated in your owner's manual. Many transfer cases require specific automatic transmission fluids (ATF) like Dexron VI, while others require heavy gear oils like 75W-90 or proprietary friction-modified fluids. Using the incorrect fluid viscosity or formulation can ruin internal clutch packs, destroy rubber seals, and cause immediate mechanical failure.

What happens if I never change my transfer case fluid?

Over time, thermal breakdown causes the fluid to lose its lubricating properties, while microscopic metal wear particles accumulate and act as an abrasive paste. This neglect leads to stretched drive chains, scored planetary gears, seized bearings, and complete failure of the four-wheel-drive engagement mechanism, resulting in costly unit replacement.

Why is it critical to remove the fill plug before the drain plug?

Removing the fill plug first ensures that you can actually replenish the fluid before you drain the old supply. If you drain the fluid and discover that the fill plug is rusted solid or stripped, you will be unable to refill the gearbox, rendering your vehicle undrivable until the plug is professionally extracted.

Do I need to replace the crush washers every time?

Yes, you should always replace the metal crush washers on the drain and fill plugs during every service. These washers deform slightly upon initial tightening to create a leak-proof seal; reusing flattened or crushed washers significantly increases the risk of slow fluid leaks and subsequent transfer case starvation.

Protect your vehicle's four-wheel-drive system and avoid costly transmission repairs by stocking up on manufacturer-approved fluid and scheduling your transfer case service today.
