How To Adjust Door Hinges By Bending: A Professional Guide To Structural Realignment
Adjusting door hinges by bending is a mechanical intervention used to correct sagging or binding by physically manipulating the hinge leaves or knuckles to alter the door's spatial position within the frame. This process requires a specific hinge-bending tool—a steel lever designed to exert leverage on individual hinge knuckles—to shift the door’s alignment without requiring full removal or shimming of the hinges.
Pre-Operation Requirements and Tooling Specifications
Before attempting to manipulate hinge geometry, you must confirm that the root cause of the door issue is actually hinge-related rather than a result of foundation settling or frame racking. Bending hinges is a permanent structural modification that should only be performed once all other variables, such as loose screws or debris buildup, have been eliminated.
- Essential Equipment: A dedicated heavy-duty hinge-adjusting tool (often called a hinge bender or jack), a step ladder, a spirit level (minimum 24-inch length), and a non-marring shim for door stabilization.
- Pre-Procedure Assessment: Inspect the gap between the door and the jamb. A consistent reveal, typically 1/8 inch, should be maintained. If the hinge screws are stripped or the wood is punky, bending the hinges will only exacerbate the structural failure; tighten or replace all mounting hardware first.
- Duration and Skill Level: This is an intermediate-level carpentry task that takes approximately 30 to 45 minutes for a standard residential door. It requires patience, as over-bending can crack the hinge knuckles or compromise the finish of the door frame.
The Technical Execution of Hinge Realignment
The primary objective is to apply controlled force to the knuckle of the hinge to alter the pivot point. This moves the door horizontally or vertically to restore even clearance.
Step 1: Diagnostic Mapping of the Reveal
Close the door and inspect the gaps along the latch side, top, and bottom. Identify exactly where the door is rubbing or where the gap is uneven. If the door drags on the top of the latch side, you are likely looking at a need to shift the weight at the top hinge. If the gap is too tight near the hinge side, the hinge knuckles themselves may need to be brought into a slightly different vertical plane. Use a pencil to mark the exact locations of the friction points on the door frame.
Step 2: Selecting the Targeted Hinge
For a door that is sagging, you will typically focus your attention on the top hinge. The top hinge bears the most load. Slide the hinge-adjusting tool over the middle knuckle of the target hinge. Ensure the tool is seated fully so the leverage is applied to the metal of the knuckle, not the decorative finish or the pin head.
Step 3: Applying Controlled Leverage
Apply pressure slowly and incrementally. If you are trying to lift the door, you will pull the tool toward the door casing. If you are trying to move the door closer to the jamb, you will push the tool away. Start with very slight movements—approximately 1/16 of an inch at a time. The metal of the hinge is springy and may move further than intended if forced aggressively.
Warning: Never attempt to bend a hinge that is made of lightweight, plated zinc or decorative thin-gauge metal. These materials are prone to snapping under the pressure required for realignment. Only proceed with high-quality steel or solid brass commercial-grade hinges.
Step 4: Verification and Re-Assessment
After every incremental bend, remove the tool and test the door by opening and closing it multiple times. Monitor the clearance at the latch side. If the movement has corrected the rub, stop immediately. If the friction remains, move to the middle hinge and repeat the process with even less force. Often, a tiny adjustment on the middle hinge is more effective than a massive adjustment on the top hinge.

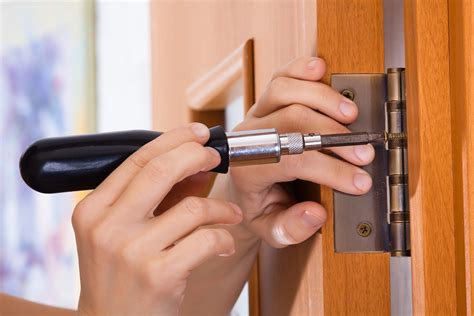

How to Adjust Door Hinges So a Door Closes Perfectly
Hinge Material and Load-Bearing Characteristics
Understanding the properties of your hardware is critical for preventing permanent damage during the bending process.
| Hinge Material | Deformation Resistance | Bending Suitability | Recommendation |
|---|---|---|---|
| Solid Steel | High | Excellent | Ideal for adjustment tools |
| Solid Brass | Moderate | Good | Proceed with caution; mark finish |
| Plated Zinc | Very Low | Poor | Replace instead of bending |
| Stainless Steel | Very High | Fair | Requires significant leverage |
| Ball-Bearing Steel | High | Excellent | Most durable for frequent use |
Field Failures and Remediation Strategies
Even with careful execution, complications can arise during the bending process. Address these scenarios as they occur to avoid further damage to the door assembly.
- Over-Bending the Hinge: If you have moved the door too far and it now binds on the hinge side, use the tool to apply reverse pressure. If the metal has been pushed past its yield point and remains loose, the hinge must be replaced, as its structural integrity is compromised.
- Hinge Pin Binding: After bending, the hinge pin may become difficult to insert or remove because the knuckles are no longer perfectly aligned. Use a steel punch and a hammer to gently realign the knuckles internally, or lubricate the pin with a dry silicone-based spray to accommodate the new geometry.
- Surface Finish Damage: Applying a heavy steel tool to the hinge can scratch or chip the paint or plating. Always wrap the jaws of the tool or the hinge itself with a piece of painter’s tape or thin leather to provide a buffer between the steel tool and the decorative surface of the hinge.
Frequently Asked Questions
Can I adjust door hinges without a specialized bending tool?
It is not recommended. While some suggest using a crescent wrench, this method lacks the precision required to apply force to the knuckle and often results in bent hinge plates or damaged wood trim. Always use a purpose-built hinge adjuster to ensure force is concentrated on the hinge barrel.
How much can I move a door by bending the hinges?
Bending is a fine-tuning adjustment intended for gaps of 1/8 inch or less. If your door is misaligned by more than 1/4 inch, the issue is likely structural, such as a loose door frame or sagging floor joists, and bending the hinges will not provide a permanent solution.
Will bending the hinges permanently weaken them?
If performed within the elastic limit of the metal, the hinge will maintain its strength. However, repetitive bending or excessive force will work-harden the metal, leading to brittleness and potential fatigue failure over time. Limit adjustments to the minimum force necessary.
Should I remove the door before bending the hinges?
No, the door should remain hung. The weight of the door provides the necessary resistance for the bending tool to work effectively against the hinge knuckles. Bending the hinges while the door is removed is nearly impossible and offers no reference point for the required adjustment.
Mastering the mechanics of hinge alignment allows for the restoration of door functionality without expensive structural repairs. For complex architectural door hardware or heavy-duty commercial installations, consult a certified door technician to ensure compliance with local fire and life-safety codes.
